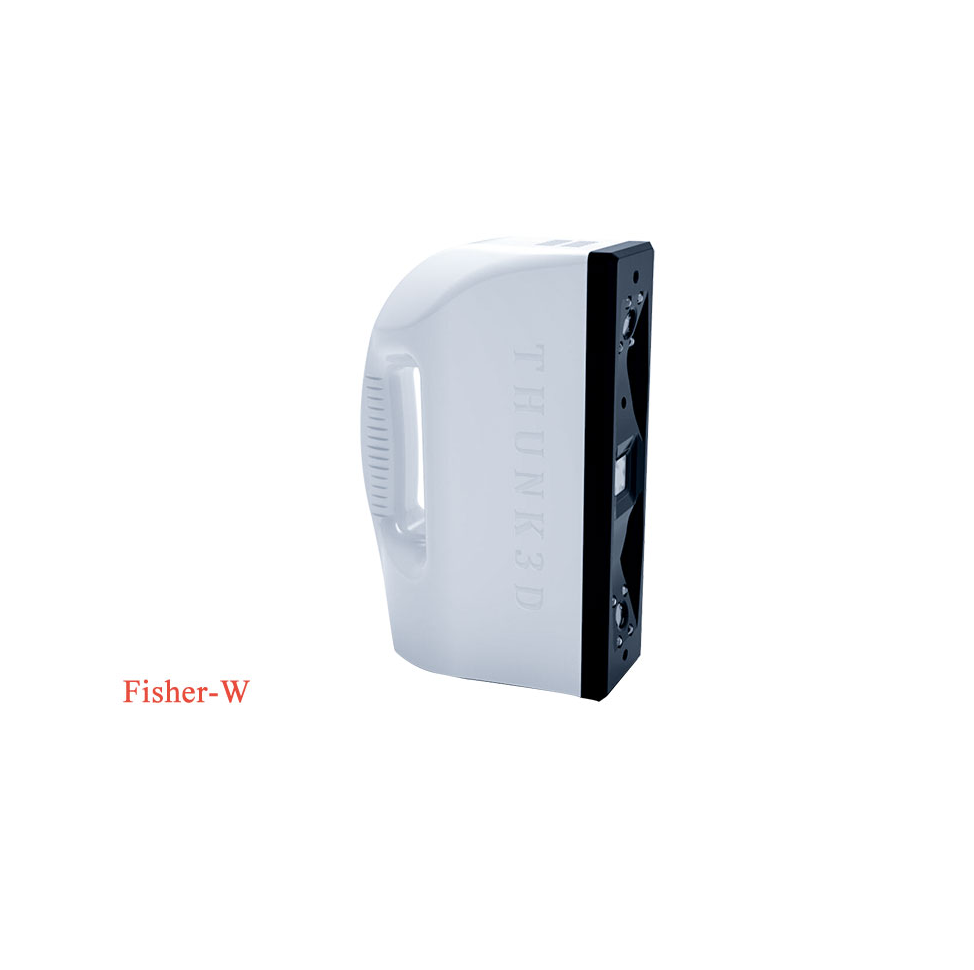

Thunk3D Fisher W 手持三维 扫描仪 (0.2mm; 3.000.000 points/s)

Camera: Monochrome, 1.3mpx2

Lens: 12mm/5mp

Raster: DLP 1280x1080

Resolution: 0.2mm

Light Area: 40x32cm; 20x16cm

Frame accuracy: 0.1mm

Scan speed: 3.000.000 points/s, 12-15F/S

Scan volume: 8-200cm

Texture: No

Alignment: Feature align (support group register), mix align, mark align, Frame align

Data format: ASC/STL

Photogrammetric: Yes (option), volume accuracy within 0.1mm/M

Advantages: Scan big objects in high resolution

Public API: USB 3.0; C++ interface

PC require: Nvidia as main GPU; Win7 (64) and higher

Certification: CE/FCC/WEEE/CNAS

Software: Fill holes; Decimate; Smoothen

After process (option):

CAD/Scan importing;

Point process (Register/ Merge, Noise Delete/Noise Filtering)

Polygon process (Smooth/ Decimate/ Subdivide/ Fill holes/ Reomove Markers/ Scale)

Polygon Healing (Abnormal/ Cross/etc)
