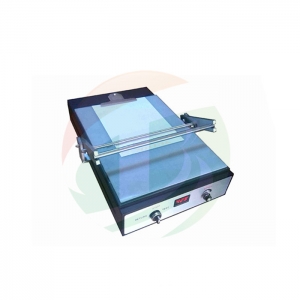

TOB TOB-XT-200CA 300mm宽度 自动涂膜机 (0-200 mm/sec)

Working Voltage: 110V AC or 208 - 240V AC 50/60Hz Single Phase

Power: 200W

Traverse Speed: 0 - 200 mm/sec, variable

Max. Coating Dimensions: 430*300mm (L*W)

Coating base size: 570 * 340mm (L * W)

Platform: Glass bed for coating

Coating thickness: Coating film by precision wire bar(Thinnest coating film thickness up to 1.5µm)

Coating wire bar size

Diameter : 10mm

Length: 400mm

Effective coating width:300mm

Product Dimensions: 570mm(L) * 340mm(W) * 100mm(H)

Net Weight: 20kg

Application Notes

Rolling is absolutely necessary to ensure good density and adhesion of electrode materials to the current collector substrate after coating. Please select a rolling press from here.

You may need a vacuum oven to dry the films after coating

You may need a vacuum mixer to remove air bubbles inside the slurry and to make all coatings uniform

You may need a Slurry Viscosity Tester to make coatings consistent
