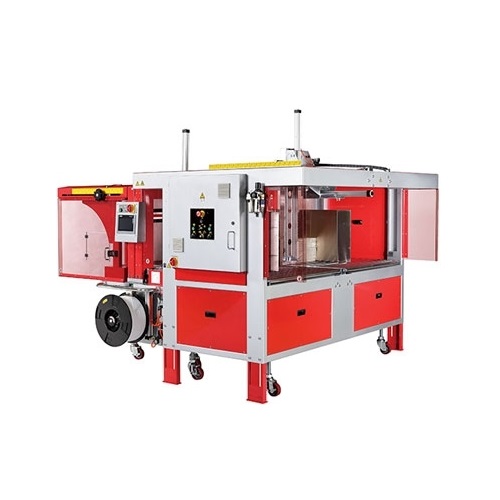

Transpak TP-702CQ 四向捆扎机 (1-32kg)

Arch Size (W x H): 1250 x 450 mm

Strap Width: 5 mm, 6 mm, or 9 mm

Tension Range: 1 - 32 kg

Capacity

Up to 17 bundles/minute (single strap)

Up to 13 bundles/minute (double straps)

(Model: TP-702CQ-L)

Minimum Bundle Size: 200 mm(W) x 50 mm(H) x 350 mm(L)

Bundle Weight: max 35 kg

Conveyor Speed: 15 – 60 M/minute

Electrical Requirements: 220V, 380V, 400V, 415V 50/60Hz 3PH

Options

Light tower with low strap sensor

Foot pedal switch

Details

Video

Watch as reference: TP-702CQ Corrugated 4-Side Bundle Squaring and Strapping System

Datasheet


TP-702CQ is built based on TP-702C high speed corrugated strapper combined with the 4-side squaring station C1-BQ. It carries all the innovative features of TP-702C. The backstop, pusher, and side squaring altogether provide the precise bundle control and assure the bundle integrity during the strapping cycle. Easy bundle size change setup eliminates the downtime and makes the production more efficient. Truly user friendly machine for your Casemaking and Flexo Folder Gluer line.

Features

Compact & Robust strapping head

4-side squaring bundle control

Siemens PLC and HMI

Free access to strap guides (patents registered)

Auto strap ejector

Patented jammed-strap ejection device

Full-width pneumatic press

Hinged roller table

Multiple strap function

Variable conveyor speed

Strap end ejector

Adjustable pressure on press and squaring

Adjustable table height between 700mm and 1000 mm
