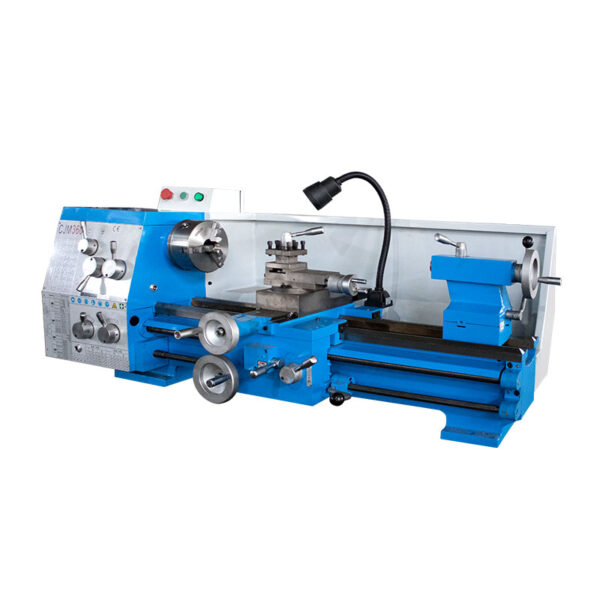

WMT CNC CJM360 台式铣床 (60-1600rpm)

Max. swing diameter over bed: 360mm

Max. length of work piece: 750mm

Max. swing diameter over middle carriage: 200 mm

Spindle bore: 40mm

Taper of hole in spindle: MT5

Max. cross stroke over tool carrier: 160mm

Max. longitudinal stroke over tool carrier: 100mm

Metric thread kinds: 22

Metric thread pitch: 0.20-7mm

Inch thread kinds: 45

Inch thread pitch: 21/2-48 1/n″

Longitudinal feed on spindle tool carrier: 0.10-1.40mm/r

Cross feed on spindle tool carrier: 0.045-0.60mm/r

Max stroke on taper hole: 80mm

Taper of Tailstock: MT3

Step of spindle speed: 12

Range of spindle speed: 60-1600r/mim

N.W.: 420kgs

G.W.: 470kgs

Overall size(L×W×H): 1580×785×1390mm

Packing size(L×W×H): 1600×800×1500mm
