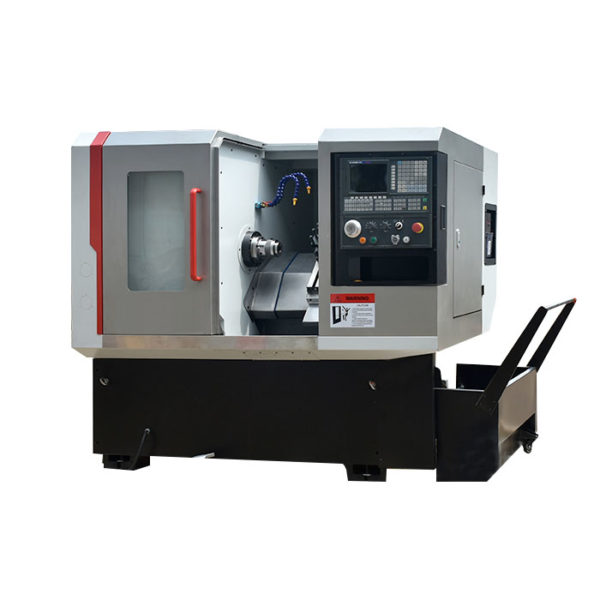

WMT CNC CK35L 斜床数控铣床 (350mm)

Max. swing over bed: φ350mm

Distance between centers: 260mm

Max.swing over cross slide: φ185mm

Max. spindle speed: 4000rpm

Spindle bore: φ52mm

Spindle nose: A2-5

Taper of spindle bore: Metric 1:20

Chuck dia.: φ160mm

X-axis travel: 350mm

Z-axis travel: 300mm

Rapid traverse X/Z: 12/15 m/min

Tool section: 20x20mm

Spindle motor power: 4KW Servo

Spindle pump power: 120w

CNC controller: GSK 980TDI

Type of guideway: Taiwan linear guideway

Overall size (LxWxH): 2600x1300x1700mm

Packing size (LxWxH): 2760x1700x2050mm

N.W/G.W: 1350/1550kg
