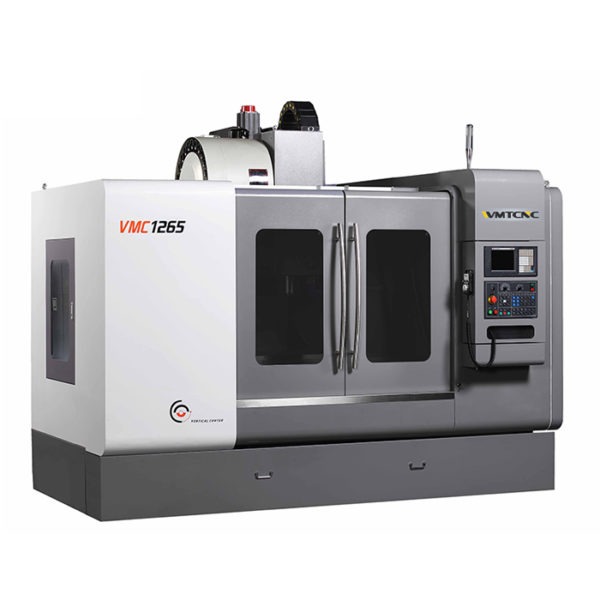

WMT CNC VMC1265 立式加工站

Worktable size (LxW): 1400x650mm

T-slot (NxWxD): 5x18x125mm

X/Y/Z axis travel: 1200/670/665mm

Distance from spindle center to column: 700mm

Distance from spindle nose to worktable: 115-780mm

Spindle taper: BT50

Spindle power: 11/15kw

Max.spindle speed: 6000rpm

Max.feed speed: 8m/min

Rapid feed speed (X/Y/Z): 15/15/12m/min

Tool change time(T-T): 2.5s

Positioning accuracy (X/Y/Z): ±0.012mm

Re-positioning accuracy (X/Y/Z): ±0.008mm

LxWxH: 3330x2700x3000mm

Max.loading of worktable: 1200kgs

Machine weight: 9000kg
