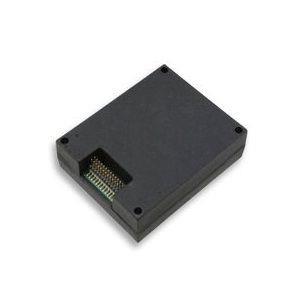

Analog Devices ADIS16135BMLZ Gyroscopes 300 /Sec Precision Angular Rate Sensor
Manufacturer: Analog Devices Model: ADIS16135BMLZ - Contact
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222)730.39.68
HCM city: (028) 38.119.636
Range: +/- 300 deg/s
Width: 44 mm
Height: 14 mm
Length: 36 mm
Bandwidth: 335 Hz
Resolution: 16 bit
Output Type: Digital
Sensitivity: 0.0125 deg/s/LSB
Sensor Type: 1-axis
Unit Weight: 310 mg
Acceleration: 2000 g
Sensing Axis: Z
Interface Type: SPI
Mounting Style: Screw
Supply Voltage - Max: 5.25 V
Supply Voltage - Min: 4.85 V
Operating Supply Current: 88 mA
Operating Supply Voltage: 5 V
Maximum Operating Temperature: + 85 C
Minimum Operating Temperature: - 40 C
