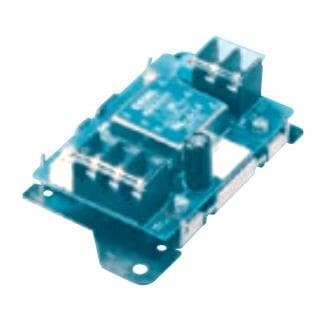

Cosel STMGFW304815-N2 Isolated Valued added PS
Manufacturer: Cosel Model: STMGFW304815-N2 - Contact
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222)730.39.68
HCM city: (028) 38.119.636
Width: 27 mm
Height: 52 mm
Length: 117 mm
Industry: Industrial
Dimensions: 52 mm x 27 mm x 93 mm
Efficiency: 87 %
Unit Weight: 140 g
Output Power: 30 W
Input Voltage: 18 V to 76 V
Cooling Method: Convection, Air-Cooled
Mounting Style: DIN Rail
Mechanical Style: Isolated
Isolation Voltage: 1.5 kV
Number of Outputs: 2 Output
Input Voltage - Max: 76 V
Input Voltage - Min: 18 V
Input Voltage, Nominal: 48 V
Output Current-Channel 1: 1 A
Output Current-Channel 2: 1 A
Output Voltage-Channel 1: 15 V
Output Voltage-Channel 2: - 15 V
Maximum Operating Temperature: + 70 C
Minimum Operating Temperature: - 20 C
