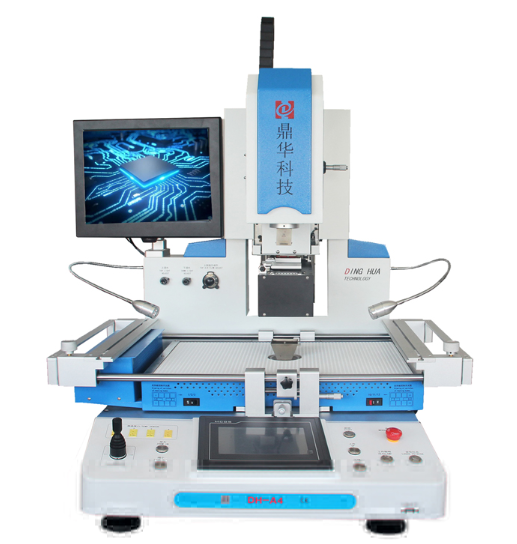

DINGHUA TECHNOLOGY DH-A4 Fully automatic BGA rework machine (6800W, 1x1~80x80mm)
Manufacturer: DINGHUA TECHNOLOGY Model: DH-A4 - Contact
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222)730.39.68
HCM city: (028) 38.119.636
Power supply: 220V+/-10% 50/60Hz
Rated power: 6800W
Upper power: 1200W
Lower power: the 2nd: 1200W; the 3rd: 4200W
Position: V-groove, PCB bracket at X/Y axises movement, with universal fixtures
Temperature control: K-type, closed-loop, PID
Temperature accuracy: +/- 2 degrees
PCBa size: Max 550*530mm, Min 10*10mm
Workbench: Front/back/left/right +/- 15mm
Zoom in/out: 10~200X
Chips available: 1*1~80*80mm
Space: 0.15mm
Temperatures ports: 1~5 (optional)
Mounting accuracy: +/-0.01mm
Net weight: 97kg
Dimension: L1022*W670*H850mm
