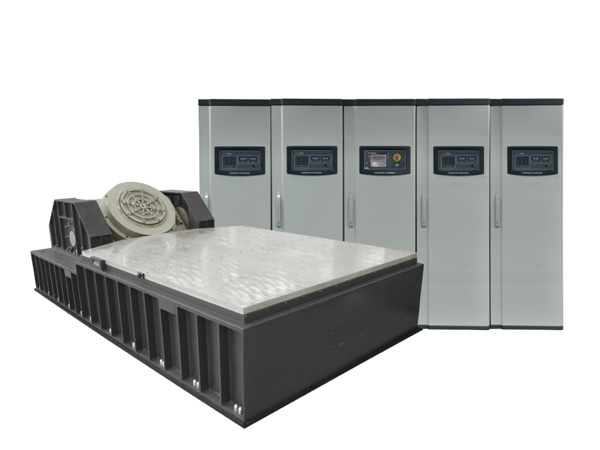

Dongling ES-80WLS4-445 Water-cooled Vibration Test System (80/80, 160 kN)

Sine/Random Force (kN): 80/80

Shock Force @6ms (kN): 160

Frequency Range (Sine) (Hz): 5-2400

Frequency Range (Random) (Hz): 5-2400

Max. Acceleration (Sine) (g): 100

Max. Acceleration (Random) (g): 60

Max. Velocity (m/s): 2

Max. Displacement (mm): 100

Max. Load (kg): 800

Resonance Point (Hz): 2200

Shaker Model: ET-80WLS4-445

Moving Part Mass (kg): 60

Armature Diameter (mm): 445

Mass (kg): 4500

Dimension (L*W*H) (mm): 1730*1104*1334

Isolation Airbag Resonance Frequency (Hz): 2.5

Power Amplifier Model: SDA-80W

Output Power (kVA): 80

Power Consumption (kVA): 140

Mass (kg): 1800

Dimension (L*W*H) (mm): 1800*1010*2020

Cooling Unit Model: CU-2

Internal Circle Flow Rate (L/min): 80

Internal Circle Water Pressure (MPa): 1

External Circle Flow Rate (L/min): 160

External Circle Water Pressure (MPa): 0.25-0.4

Water Pump Power (I/E) (kW): 8.4

Mass (kg): 300

Dimension (L*W*H) (mm): 607*1010*2020
