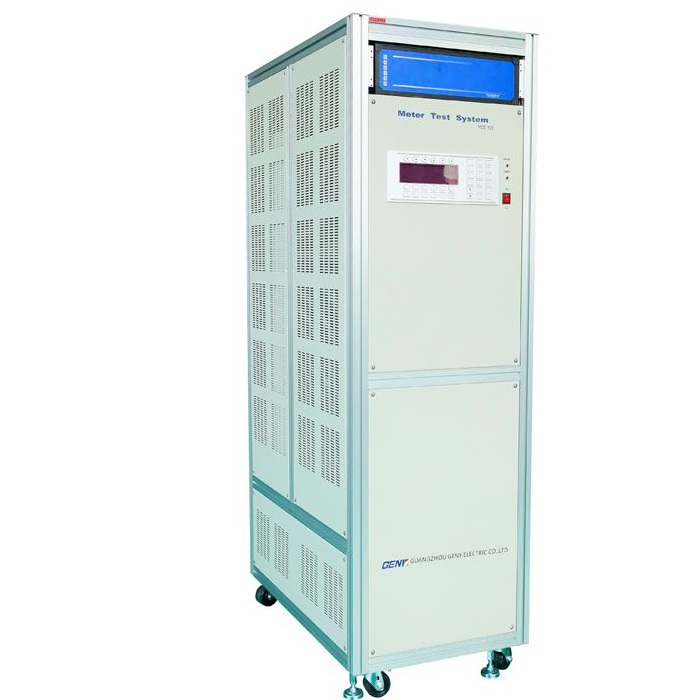

GENY YCS-103-250 Three Phase Power Source (Max.3x100VA, 3x250VA)

Voltage

- Test voltage output(Phase-Neutral): 3x(24V-300V)(or customized)

- Power of the voltage output: Max.3x100VA

- Resolution: Better than 0.01%of full scale value of range

- Setting accuracy: Better than 0.05% at the final range value

- Stability: Better than 0.005%/h(integration time 150s)

- Load regulation from 0-max.load: Better than 0.01%

- Distortion factor: Better than 0.3% for linear resistance load

- Harmonics: 2nd-41st free programmable

Current

- Test current output: 3x(1mA-120A/200A)

- Power of the current output: Max.3x250VA

Phase angle

- Range: 0-360°

- Resolution: 0.01°

- Setting accuracy: 0.1°

Frequency

- Range: 45Hz-65Hz

- Resolution: 0.01Hz

Error display

- Type of error display: Red LED

- Resolution of the error displays: 8 digits
