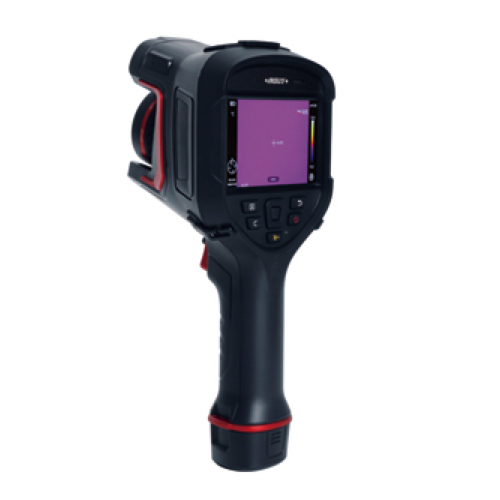

INSIZE 0234-TC850A Infrared Thermal Imaging Cameras (-40°C~150°C, 0°C~650°C)
Manufacturer: INSIZE Model: 0234-TC850A - Contact
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222)730.39.68
HCM city: (028) 38.119.636
Measurement Range: -40°C~150°C, 0°C~650°C (Auto-Switching)
Measurement Accuracy: ±2°C or ±2%, whichever is greater
Analyzed Target: 12 in total (spot/line/area)
Temperature Alarm: Full screen with image, voice, flash
Display Screen: 4.3" Touchscreen LCD, 800x480 pixel
Infrared Resolution: 480×360@12µm
Super Resolution: Upgrade to 960×720
Thermal Sensitivity/NETD: 45mK
Infrared Frame Rate: 30Hz/9Hz
Field of View: 25°×19°
Spatial Resolution/IFOV: 0.91mrad
Distance to Spot Size (D:S): 1099:1
Digital Zoom: 1.1x~16x
Laser: Indication/ranging (0.1m~40m)
Storage: Built-in 64GB + External SD (up to 256GB)
Image Storage: JPG (with temperature data)
Video Storage: MP4 (audio), IRGD (with temperature data, up to 30Hz)
WIFI: Mobile terminal image/video transmission
Battery Life: ≥4 hours operating time
Protection: IP54, 2m drop test
Dimension: 292×125×125mm
Weight: 1.2kg
