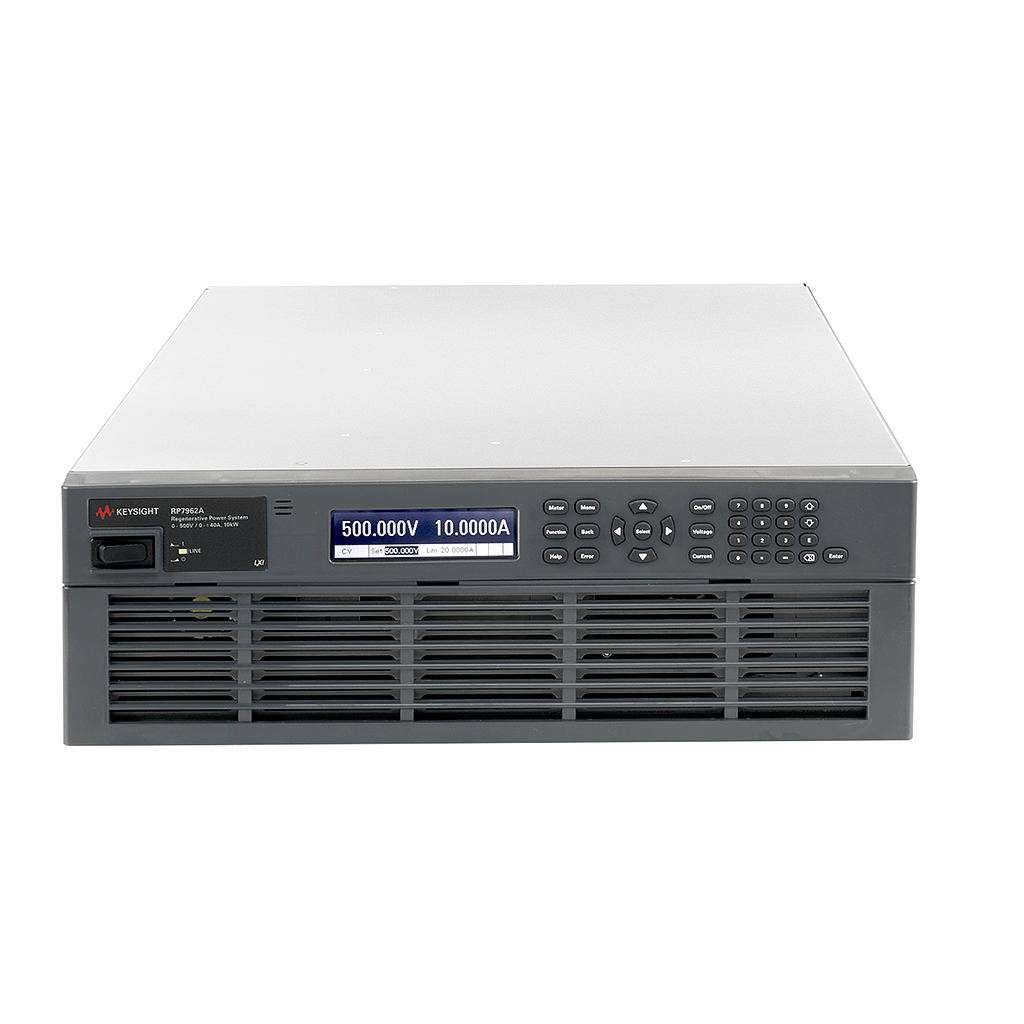

KEYSIGHT RP7952A Regenerative Power System (0~500V; 0~±40A; 0~±10kW)
Manufacturer: KEYSIGHT Model: RP7952A Guarantee: 12 Month - Contact
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222)730.39.68
HCM city: (028) 38.119.636
• DC ratings: 0~500V; 0~±40A; 0~±10kW
• Output ripple and noise: 500mV; 100mV; 200mA
• Load regulation: 30mV; 17mA
• Programming and meas. accuracy: 0.03% + 60mV; 0.03% + 80mV
• Current programming and meas. accuracy: 0.1% + 24mA
• AC input: 3 phase; 200 VAC ± 10% and 208 VAC ± 10%
• Input VA: 11.5 kVA
• Command processing time: ≤ 1 ms from receipt of command to start of output change
• Computer interfaces: LXI, LAN, USB, GPIB
• Typical weight: 70 lbs. (31.8 kg)
