LANGER EMV-Technik S2 set Magnetic Field Probes for E1
Manufacturer: LANGER EMV-Technik Model: S2 set - Contact
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222)730.39.68
HCM city: (028) 38.119.636

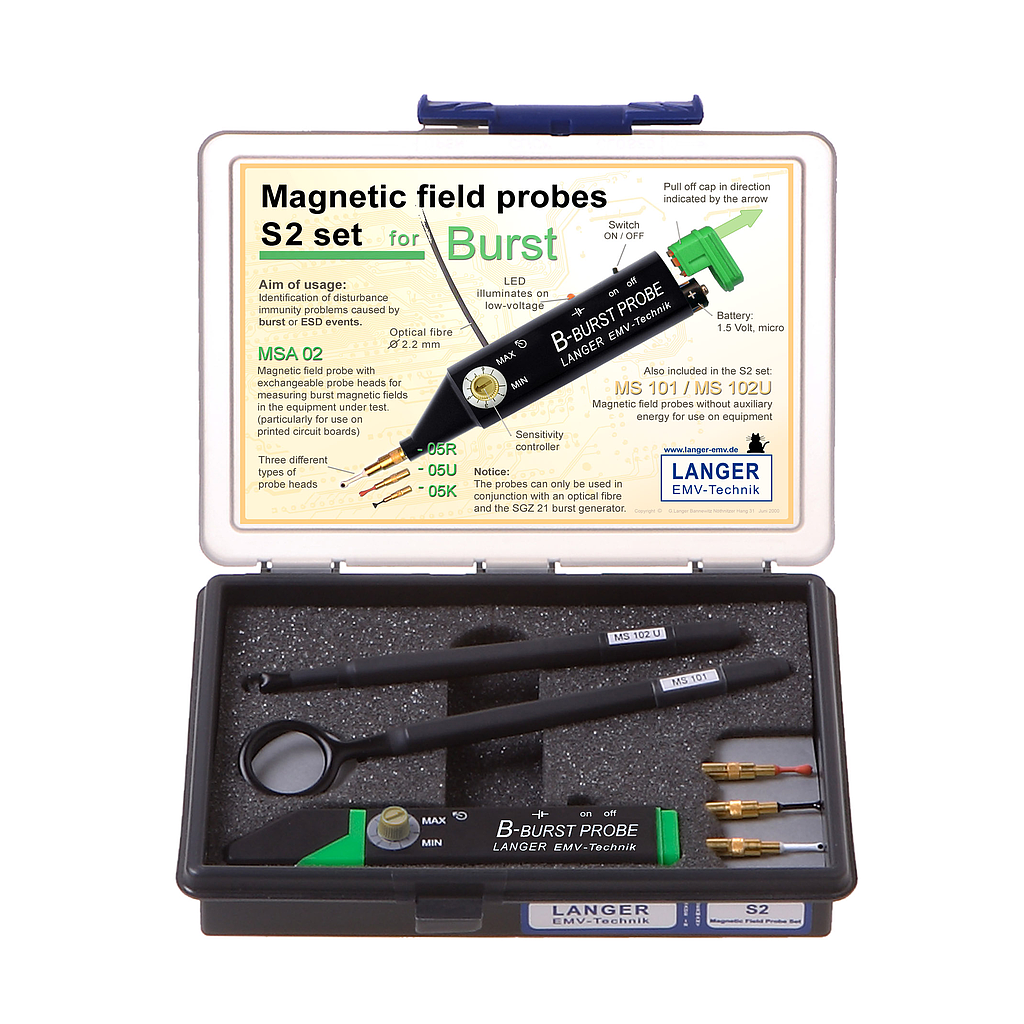

Scope of delivery
1x MSA 02, Magnetic Field Probe (active)
1x 05K black, Probe Head for MSA 02
1x 05R white, Probe Head for MSA 02
1x 05U orange, Probe Head for MSA 02
1x MS 101, Magnetic Field Probe
1x MS 102U, Magnetic Field Probe
1x S2 case, System Case
1x S2 m, S2 Set User Manual
Short description
The S2 set contains active and passive magnetic field probes. They measure the nonreactive fast transient pulse magnetic fields in electonic devices and assemblies under interference. Burst and ESD processes, which cause problems in the device under test, can be analyzed. The magnetic field probes transmit the measured signals via the LWL connection to the optical receiver of the SGZ 21. The S2 set can only be operated with the SGZ 21 burst generator included in the E1 set. One AAA battery is required to operate the MSA 02 probe.
