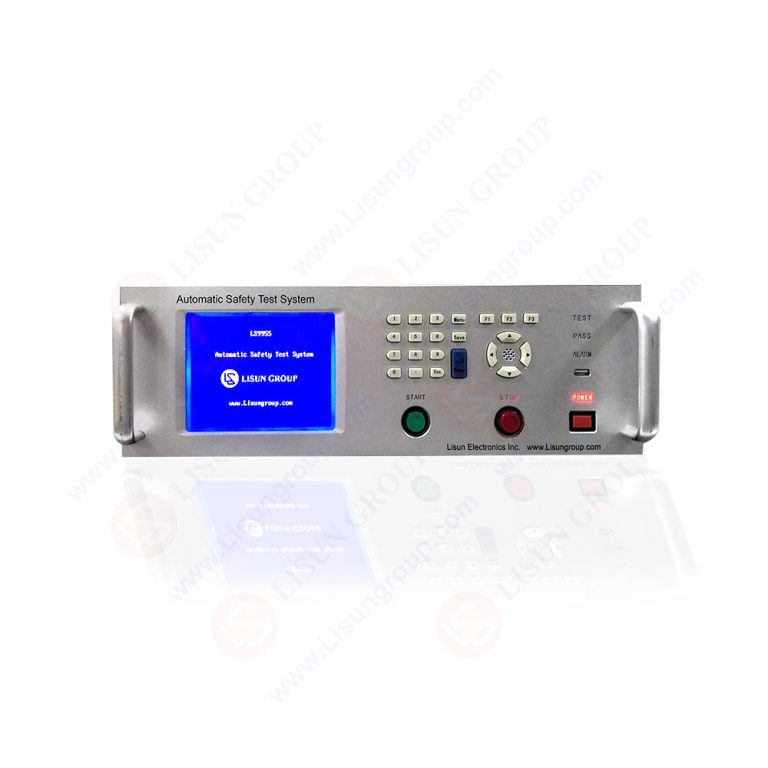

Lisun LS9955 Automatic Electrical Safety System (4000V, 20mA, 2000MΩ)

Name: Lisun LS9955 Automatic Electrical Safety System (4000V, 20mA, 2000MΩ)
Brand: Lisun
SKU: LisunLS9955
Availability: OutOfStock

• The LS9955 can do test for Withstand Voltage (AC/DC), Insulation Resistance (IR), Leakage Current (LLC) and Ground Resistance (GR)

Withstand Voltage Test (AC/DC)

Voltage Range: 100~4000V

Accuracy: ± (5%+3V)

Current Range:

AC: 0.10~20.00mA

DC: 0.10~12.00mA

Leakage Current Test (LLC)

LLC Range: 0.10~20mA

Accuracy: ± (0.3%+5uA)

Voltage Range: AC10.0~300.0V

Insulation Resistance Test (IR)

IR Range: 1.00~2000MΩ

Accuracy: 5% + 0.5MΩ

Voltage Range: DC100~1000V

Grounding Resistance Test (GR)

GR Range: 0~600mΩ

Accuracy: ± (5%+2mΩ)

Output Current: AC1.00~30.00A

Power Test

Voltage: 10~300V

Current: 0.010~20.00A

Power: 1.0~6000.0W

PF: 0.2~1.0

Accuracy: Class 0.5

Test Time: 0~999.9s

Details

Datasheet

• Remote control device (Optional)

• Display all setting parameters and testing results in the same big LCD menu

• PASS/FAIL limit values can be set. It has alarm sound and indicator light

• Test mode programmable; 50 groups setting available, 8 test steps per group

• Quick discharge

• Support 50Hz and 60Hz frequency; Electric safety wall detecting feature

• The LS9955 can do test for Withstand Voltage (AC/DC), Insulation Resistance (IR), Leakage Current (LLC) and Ground Resistance (GR)

• The LS9956 can test for Withstand Voltage (AC/DC), Insulation Resistance (IR), Leakage Current (LLC), Ground Resistance (GR) and Power
