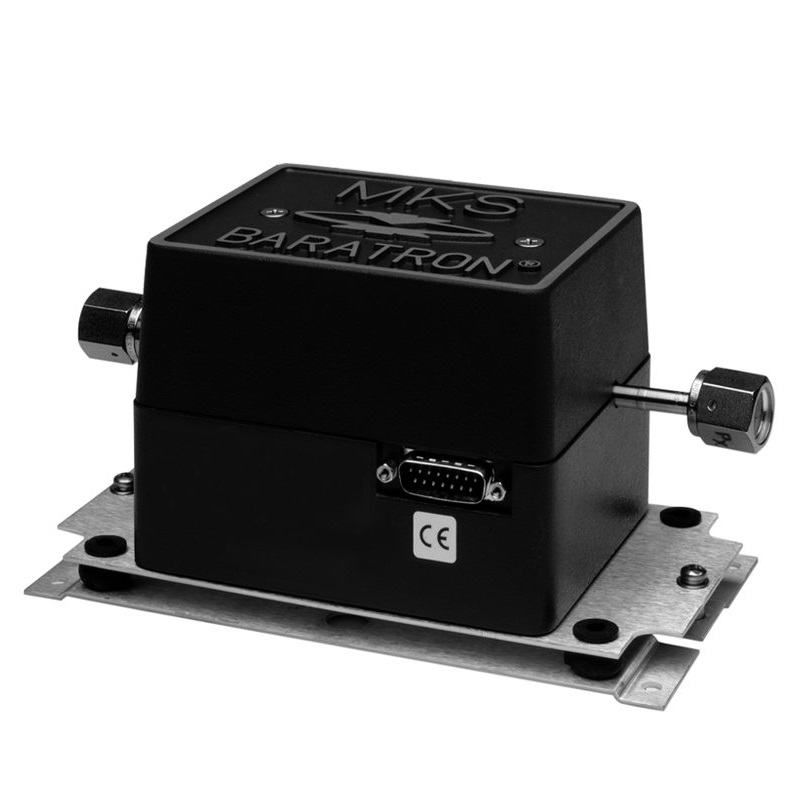

MKS AD06A Baratron® Differential Pressure Sensor (1 mmHg; 0.05%)
Manufacturer: MKS Model: AD06A P/N: AD06A01TRA - Contact
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222)730.39.68
HCM city: (028) 38.119.636
Measurement Type: Differential
Full Scale Pressure Ranges: 1 mmHg
Fitting Type: 4 VCR female
Accuracy: 0.05% of Reading
Resolution: 1 part in 106 Full Scale
Operating Temperature: Temperature regulated at 45°C
Overpressure Limit: 40 or 45 psid
Maximum Line Pressure: 150 psig
Materials Exposed to Process Gases:
- Px: Inconel, Stainless Steel
- Pr: Inconel, Stainless Steel, Alumina, Palladium Glass
Volume: Px: 3.5 cc; Pr: 25 cc
Compliance: CE
For specific range please check the attachment below!
