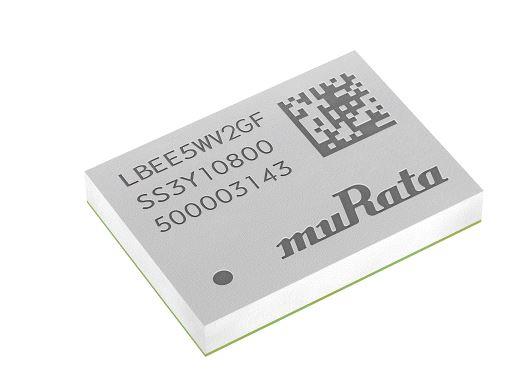

Murata Electronics LBEE5WV2GF-001 WLAN Bluetooth Combo Module Type 2GF Shielded Small Wi-Fi 11a/b/g/n/ac Dual-band SISO + Bluetooth 5.4 Module
Manufacturer: Murata Electronics Model: LBEE5WV2GF-001 - Contact
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222)730.39.68
HCM city: (028) 38.119.636
Features: MAC/BD Address Are Embedded
Frequency: 2.412 GHz to 5.825 GHz
Shielding: Shielded
Dimensions: 10 mm x 7.2 mm x 1.5 mm
Interface Type: UART
Mounting Style: SMD/SMT
Moisture Sensitive: Yes
Number of Channels: 1 Channel
Supply Voltage - Max: 4.6 V
Supply Voltage - Min: 3.2 V
Antenna Connector Type: 7 Channel
Operating Supply Voltage: 3.2 V to 4.6 V
Protocol - WiFi - 802.11: 802.11 a/b/g/n/ac
Maximum Operating Temperature: + 70 C
Minimum Operating Temperature: - 20 C
Protocol - Bluetooth, BLE - 802.15.1: Bluetooth 5.3
