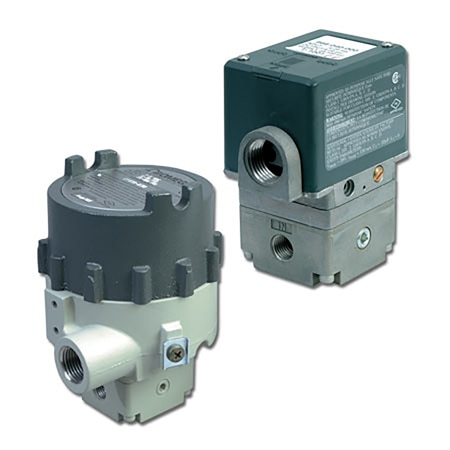

OMEGA IP510-0120 Heavy Duty Current I/P or Voltage E/P to Pressure Converter (120 psi, NPT Female, 1/4 in, IP65, NEMA Type 4X)

Accuracy: ± 0.1 %

Approvals: FM, CSA

Impedance: 6000 Ω

Span Note: 0.013% of calibrated span per ºF, 0.022% of calibrated span per ºF

Span, Max: 0.00013

Vibration: Less than 0.5% of span per 1 g 5 to 2000 Hz, 3 g maximum, 3 axes

Hysteresis: ±0.1%

Accuracy Note: ±0.25% of output span

Input Current: 4 to 20 mA

Input Voltage: N/A

Repeatability: ±0.01%

Enclosure Type: NEMA 1, IP00

Supply Voltage: 9 to 40 Vdc

Enclosure Ratings: IP65, NEMA Type 4X

Supply Power Note: Supply Voltage, E/P Transducer: Intrinsically Safe/Non-Incendive: 9 to 28 Vdc, less than 20 mA General Purpose: 9 to 40 Vdc, less than 20 mA

Repeatability Note: ±0.10% of output span

Media Compatibility: Air

Input Control Signal: N/A

Output Pressure, Max: 120 psi

Output Pressure, Min: 0 psi

Supply Pressure, Max: 100 psi

Electrical Connection: 1/2 in NPT Female Conduit

Total Air Consumption: 0.07 SCFM

Loop Voltage Drop Note: Less than 10 Vdc drop at 20 mA Less than 10 Vdc drop at 50 mA

Process Connection Size: 1/4 in

Process Connection Type: NPT Female

Hazardous Classification: Vmax = 30 Vdc, Imax = 100 mA, Ci = 0 µF, Li = 0 mH T4 Max. Ambient 70°C. Voc and Isc of a barrier shall not exceed Vmax and Imax of the transducer. (Li + wiring) and (Ci + Cwiring) shall not exceed La and Ca of a barrier. A barrier is not necessary when the transducer is in any of these locations.

Storage Temperature, Max: 93 °C

Storage Temperature, Min: -40 °C

Operating Temperature, Max: 71 °C

Operating Temperature, Min: -29 °C

Total Air Consumption Note: 0.07 SCFM (2 LPM) maximum

Supply Pressure Sensitivity: No effect

Material Construction Option: CSA Approved and FM Approved

Ambient Temperature Effect, Max: ±0.022% of nominal span per ºF
