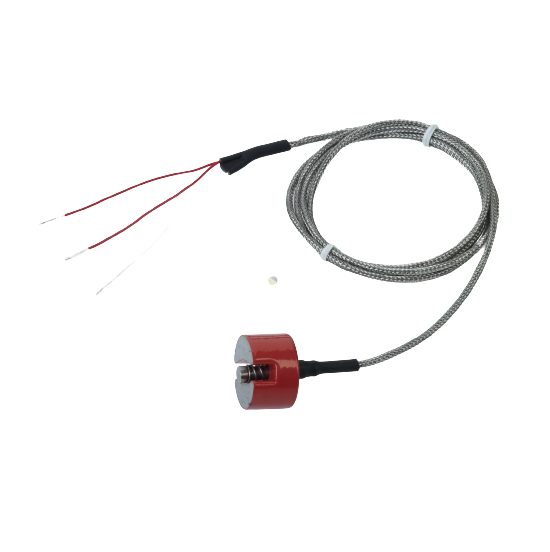

Sterling Sensors RSMAG660005MOAA7 Magnet RTD Surface Temperature Sensor (Pt100 4-wire Class A 5m; 6kg; -50~400°C)
Manufacturer: Sterling Sensors Model: RSMAG660005MOAA7 Origin: United Kingdom - Contact
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222)730.39.68
HCM city: (028) 38.119.636
Details
Specification
Features
- Magnet will hold 90% of its pull at 400 or 250°C
- Pt100 Class A
- Spring loaded
- 4 wire connection, can be used with 2, 3 or 4 wire systems
Application
- Surface temperature measurement on ferrous materials
- Temperature mapping
- Short term positioning
6kg Pull Force, Rated to 400°C, with 50mm Tails
Description | Part Number |
4-wire Class A 1m lead (400°C) | RSMAG660001MOAA7 |
4-wire class A 2m lead (400°C) | RSMAG660002MOAA7 |
4-wire class A 3m lead (400°C) | RSMAG660003MOAA7 |
4-wire class A 4m lead (400°C) | RSMAG660004MOAA7 |
4-wire class A 5m lead (400°C) | RSMAG660005MOAA7 |
3kg Pull Force, Rated to 250°C, with 50mm Tails
Description | Part Number |
4-wire Class A 1m lead (250°C) | RSMAG630001MOAA7 |
4-wire Class A 2m lead (250°C) | RSMAG630002MOAA7 |
4-wire Class A 3m lead (250°C) | RSMAG630003MOAA7 |
4-wire Class A 4m lead (250°C) | RSMAG630004MOAA7 |
4-wire Class A 5m lead (250°C) | RSMAG630005MOAA7 |
Datasheet
