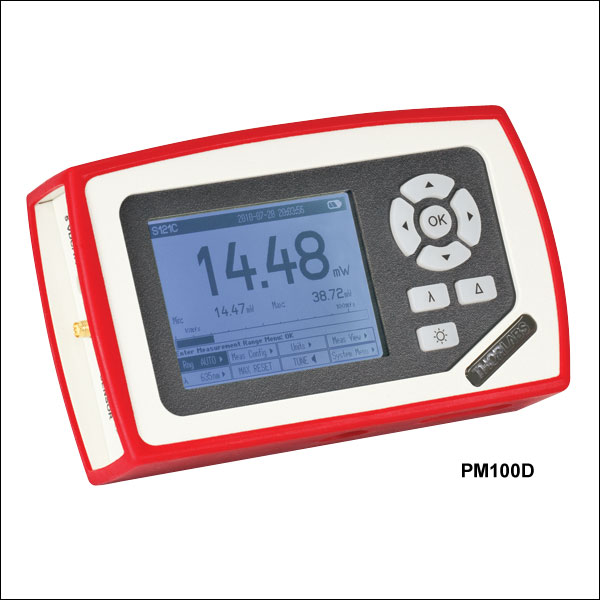

THORLABS PM100D Compact Power and Energy Meter Console (Digital 4" LCD)
Manufacturer: THORLABS Model: PM100D - Contact
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222)730.39.68
HCM city: (028) 38.119.636
Compatible Sensors: Photodiode, Thermal, and Pyroelectric(a)
Optical Power Range(b): 100 pW to 200 W
Optical Energy Range(b): 3 µJ to 15 J
Available Sensor Wavelength Range(b): 185 nm - 25 μm
Max Repetition Rate(b): 3 kHz
Display Refresh Rate: 20 Hz
Bandwidth(a): DC - 100 kHz
Photodiode Sensor Range(c): 50 nA - 5 mA
Thermopile Sensor Range(c): 1 mV - 1 V
Pyroelectric Sensor Range(c): 100 mV - 100 V
(a) The PM400 console is compatible with all Thorlabs' C-Series Pyroelectric Energy Sensors except the ES408C Fast Pyroelectric Energy Sensor.
(b) Sensor Dependent
(c) Ranges Selectable in Watts (Photodiode and Thermopile) or Joules (Pyroelectric) and is dependent on the sensor used
