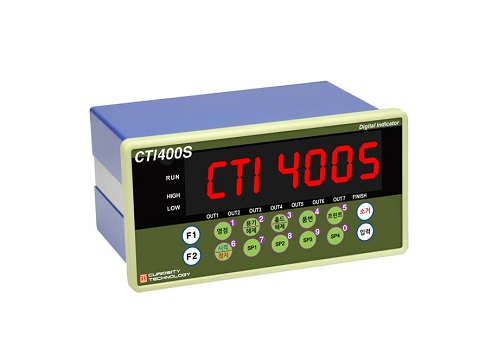

CURIOTEC CTI-400S 簡易計量用デジタルインジケーター

Digital Load Cell Interface

+ Excitation Voltage: Dc 12V

+ Load Cell Connection:  Max 8 Ea

+ Communication Mode:  Rs-485

+ Communication Speed: 2400 Bps 115 200 Bps

Operation Condition

+ Temperature Range : -10°C~+40°C [14°F~104°F]

+ Humidity Range:  40%-85% Rh Non-Condensing

Function

+ Calibration Mode:  Dead Weight Calibraton

+ Display: 6 Digit 25.4Mm(1Inch) Red Fnd; 7 Ea Weight Unit Red Led; 8 Ea State Display Green Led; 12 Point Green Led

+ Key: 14 Ea

+ External Input:  6 Ea

Communication: Serial Port1 (Rs-232C): Data Transmit Serial Printer Modbus(Rtu)

Product

+ Size: 200Mm(W)X100Mm(H) X 1265Mm(D)

+ Weight: Approx. 1.2 Kg
