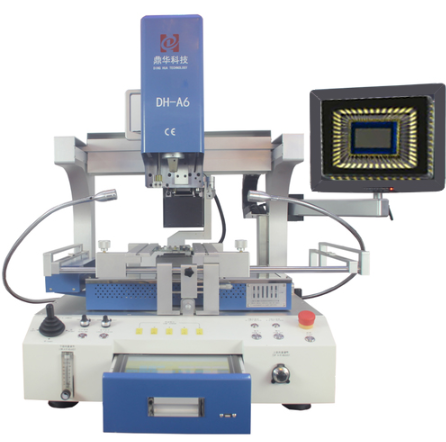

DINGHUA TECHNOLOGY DH-A6 Auto rework station with moveable head (6800W, 1x1~70x70mm)

Power supply: 100~220V +/-10%

Rated power: 6800W

Upper power: 1200W

Lower power: 1200W

IR power: 4200W

Operation mode: fully automatically desodoldering, pick-up, mounting and soldeirng

Main configuration: Auto feeding and recycling system, HD touchscreen for temperature profile setting and analysis and optical alignment system

Temperature profile storage: more than 50000 groups

OPtical CCD : With chio-feeder, automatically run for feeding or recycling, and aligning.

PCB position: Up and down intelligent positioning, bottom "5-point support" with V-groove fixed PCB which can be adjusted freely in the X-axis direction, with universal fixtures meanwhile

BGA position: Laser point dedicated to find the center of chip so that chip and PCB put quickly

Chip: 1*1~70*70mm

Chip spacing: 0.15mm

Dimension: L970*W850*H950 mm

Weight: 120kg
