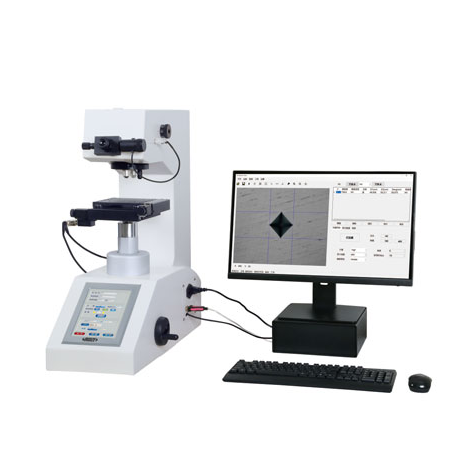

INSIZE HDT-VS1D 自動マイクロビッカース硬さ試験機 (8HV - 2900HV)

  • 生産者:INSIZE
    Model: HDT-VS1D
    品物を保証します: 12 Month
    • 要件クオート Request a Quotation
  • Price (exclude VAT)358,658,685 VND
    Price (include VAT)394,524,554 VND
    • カートへ追加
    • 今すぐ注文
  • 전화번호: いい価格のため、連絡しなさい
    ホットライン: (+84) 968060220
    電話番号: +84 (24)62923267

Range: 8HV - 2900HV

Stage lifting: manual

Load control: automatic(load/dwell/yoload)

Load dwell time: 1-99 second

Objective: 10X,40X

Eyepiece: 10X

Total magnification: 100X (for measurement of observation), 400X (for measurement)

Data output: built-in printer

Max.workpiece height: 160mm

Max. Testing width: 160mm (from the center of indenter to the wall of main body)

X-Y stage:

Dimensions: 150x150mm, travel range:50x50mm, graduation:1um,

Displacement repetition accuracy: les than 3um

Pixel:5M

Power supply:220V 50/60Hz

Demension:62x250x710mm

Weight: 50kg
