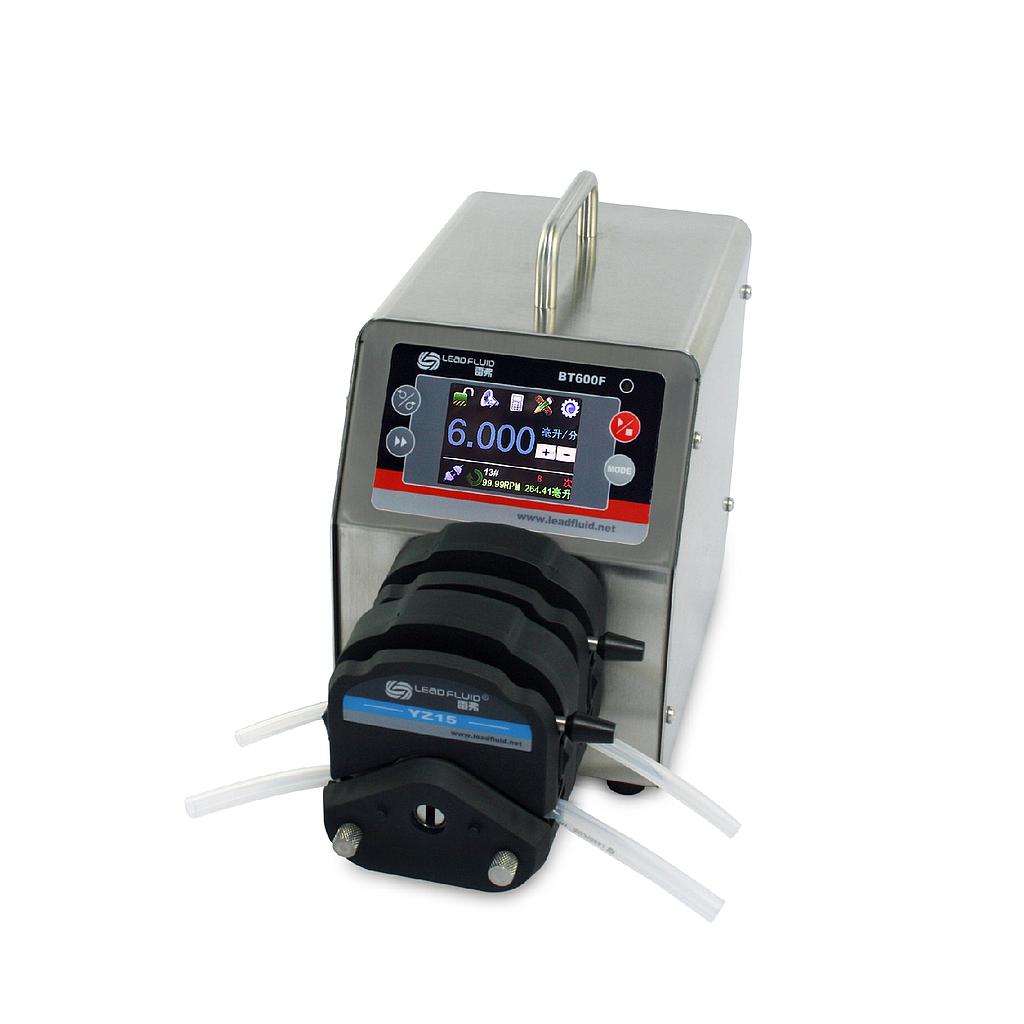

Leadfluid BT600F インテリジェント投薬蠕動ポンプ (0.006-2300mL/min, 2 CH)
生産者: Leadfluid Model: BT600F P/N: BT600F(2xYZ15) 起源: China 品物を保証します: 12 Month - 要件クオート
- 要件クオート
Price (exclude VAT) 32,553,428 VND Price (include VAT) 35,808,771 VND 전화번호: いい価格のため、連絡しなさい
ホットライン: (+84) 968060220
電話番号: +84 (24)62923267
Flow range: 0.006-2300 mL/min
Speed range: 0.1-600 rpm
Speed resolution: 0.1 rpm
Speed accuracy: 0.2%
Power supply: AC 100-240V, 50Hz/60Hz
Power consumption: <60W
External logic level control signal: 5V, 12V (standard), 24V (optional)
External analog control signal: 0-5V (standard), 0-10v, 4-20mA (optional)
Communication interface: RS485 MODBUS
Operating condition: Temperature 0~40°C; Relative humidity <80%
IP rating: IP31
Dimensions (L x W x H): 226 x 150 x 238 mm (8.90 x 5.91 x 9.37 inch)
Weight: 5.2kg (11.5 lbs)
Drive type | Pump head | Ch | Tubing size | Flow rate per channel (mL/min) |
BT600F (304SS) | YZ15 | 1 | 13# 14# 16# 19# 25# 17# 18# | 0.006-1700 |
YZ25 | 1 | 15# 24# | 0.16-1700 | |
2 x YZ15 | 2 | 13# 14# 16# 19# 25# 17# 18# | 0.006-1700 | |
2 x YZ25 | 2 | 15# 24# | 0.16-1700 | |
YT15 | 1 | 13# 14# 16# 19# 25# 17# 18# | 0.006-2300 | |
YT25 | 1 | 15# 24# 35# 36# | 0.16-2900 | |
2 x YT15 | 2 | 13# 14# 16# 19# 25# 17# 18# | 0.006-2300 |
