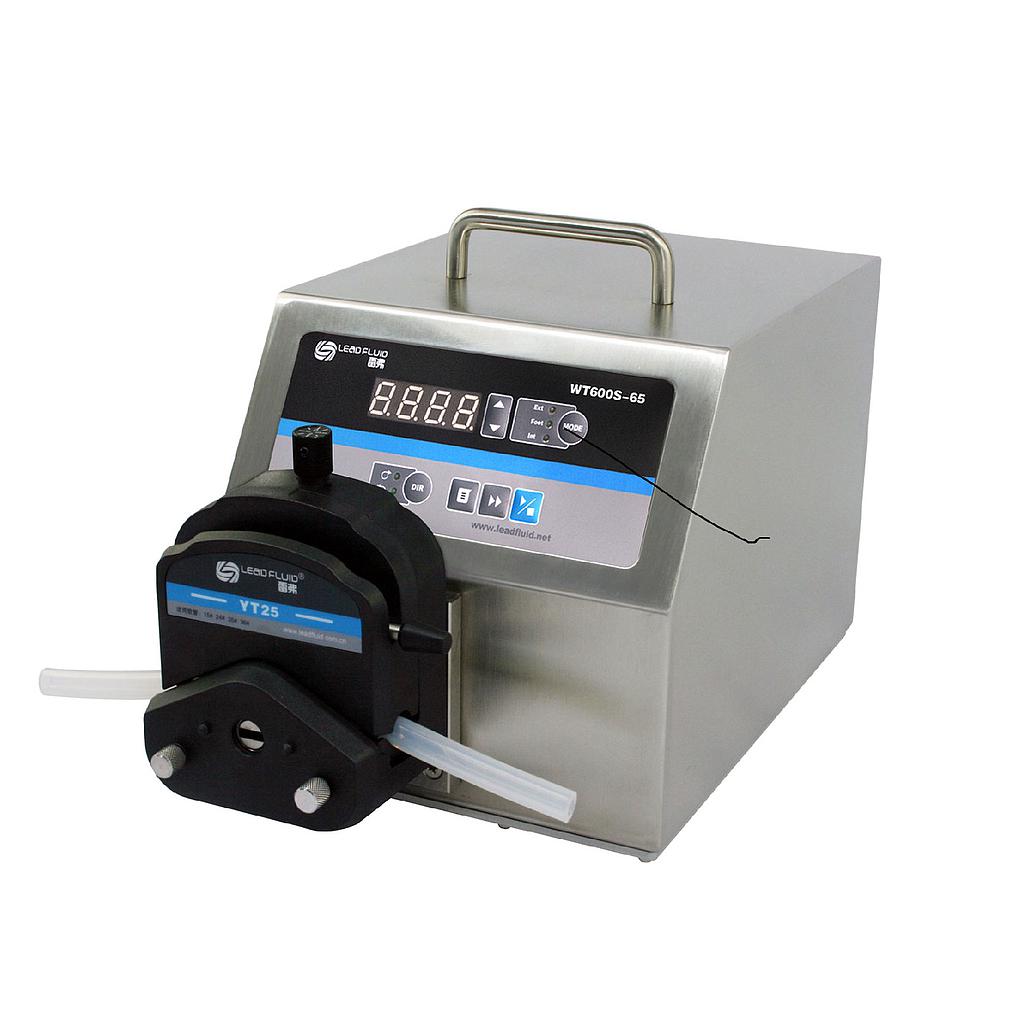

Leadfluid WT600S-65 可変速度蠕動ポンプ (50-2900mL/min, 1 CH)
生産者: Leadfluid Model: WT600S-65 P/N: WT600S-65(2xYT25) 起源: China 品物を保証します: 12 Month - 要件クオート
- 要件クオート
Price (exclude VAT) 42,163,358 VND Price (include VAT) 46,379,694 VND 전화번호: いい価格のため、連絡しなさい
ホットライン: (+84) 968060220
電話番号: +84 (24）62923267
Flow range: 50-2900 mL/min
Speed range: 30-600 rpm
Speed resolution: 1 rpm
Flow accuracy: 3%
Power supply: AC 180-264V 50Hz/60Hz (standard); AC 90-132V 50Hz/60Hz (optional)
Power consumption: <200W
External on/off control voltage: 5V, 12V (standard), 24V (optional); External control analog signal: 0-5V (standard), 0-10V, 4-20mA (optional)
Communication interface: RS485 MODBUS
Operating condition: 0-40 °C
Relative humidity: < 80%
IP grade: IP65
Dimensions (L x W x H): 330 x 220 x 235 mm (13.0 x 8.7 x 9.3 inch)
Weight: 7.1kg (15.7 lbs)
Details
| Drive type | Suitable pump heads | channel | Tubing size (mm) | Flow rate (mL/min) per channel |
| WT600S-65 | YZ15 | 1 | 13# 14# 16# 19# 25# 17#18# | 3-2300 |
| YZ25 | 1 | 15# 24# | 50-1700 | |
| 2 x YZ15 | 2 | 13# 14# 16# 19# 25# 17#18# | 3-2300 | |
| 2 x YZ25 | 2 | 15# 24# | 50-1700 | |
| KZ25 | 1 | 15# 24# 35# 36# | 80-6000 | |
| DT15-24 | 2 | 19# 16# 25# 17# | 20-2240 | |
| YT15 | 1 | 13# 14# 16# 19# 25# 17# 18# | 3-2300 | |
| YT25 | 1 | 15# 24# 35# 36# | 50-2900 | |
| 2 x YT15 | 2 | 13# 14# 16# 19# 25# 17# 18# | 3-2300 | |
| 2 x YT25 | 2 | 15# 24# 35# 36# | 50-2900 |
