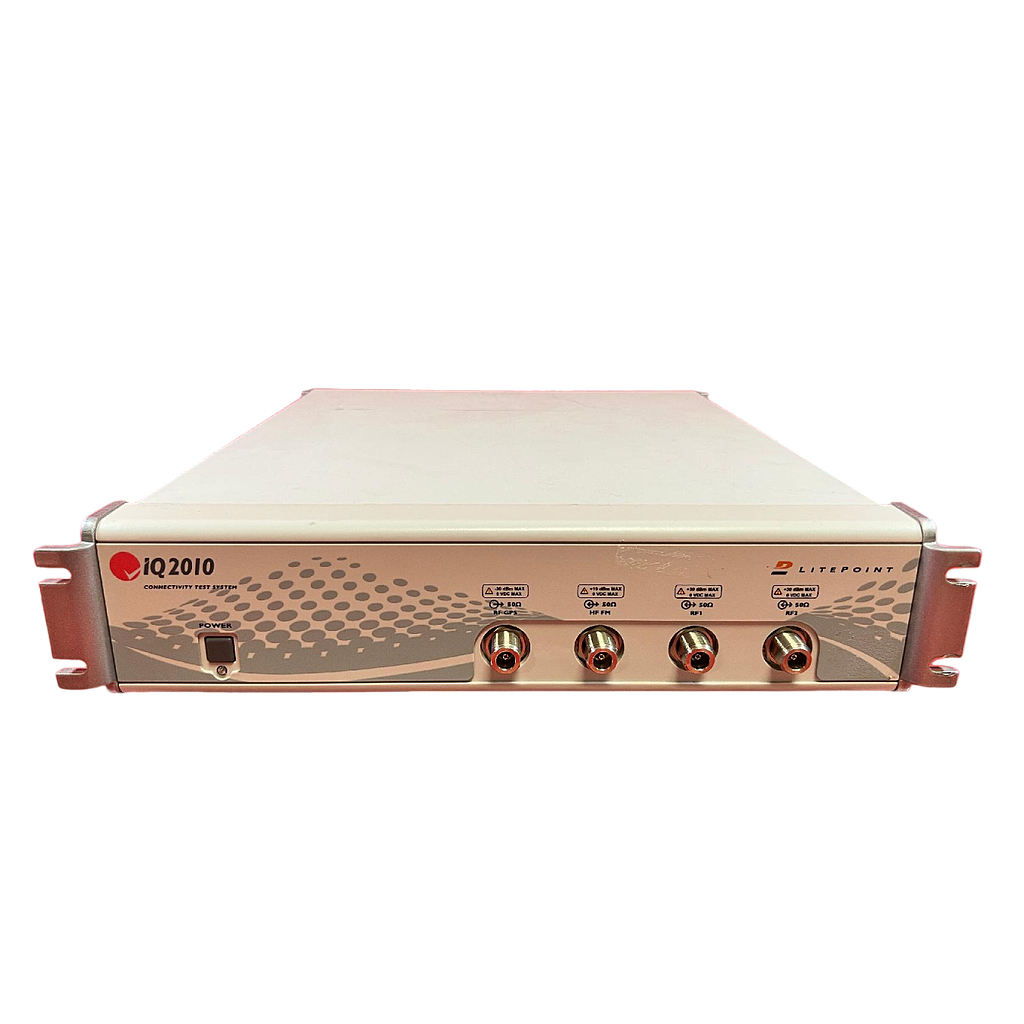

Litepoint IQ2010 接続試験システム

Full Support to Most Common Wireless Standards

WiFi (802.11 a/b/g/n)

WAVE (802.11p)

Bluetooth (1.0 / 2.0 / 2.1 / 3.0 / 4.0)

Optional Support to Several Application-Specific Wireless Standards   for Maximum Versatility

GPS

FM TX / RX

WiMAX (802.16 d/e)

Near Field Communication (ISO 18092)

ZigBee (802.15.4)  note: Available with ZigBee Software Package

Key Communication Frequency Support

76 to 108 MHz (FM)

1.57542 GHz (GPS)

2.15 to 2.7 GHz (WiFi, BT, WiMAX, ZigBee)

3.3 to 3.8 GHz (WiMAX)

4.9 to 6 GHz (WiFi, WiMAX)

5.9 to 6 GHz (WAVE)

Reduced Test Time with Concurrent Test Capability-

GPS and FM can be tested independent of  WiFi / BT / WiMAX / NFC /

ZigBee® / WAVE

Multi-platform user interface

Standards-based SW licensing allows for purchasing of only the  required capabilities initially and the convenience of easily adding  additional capabilities later, at any time
