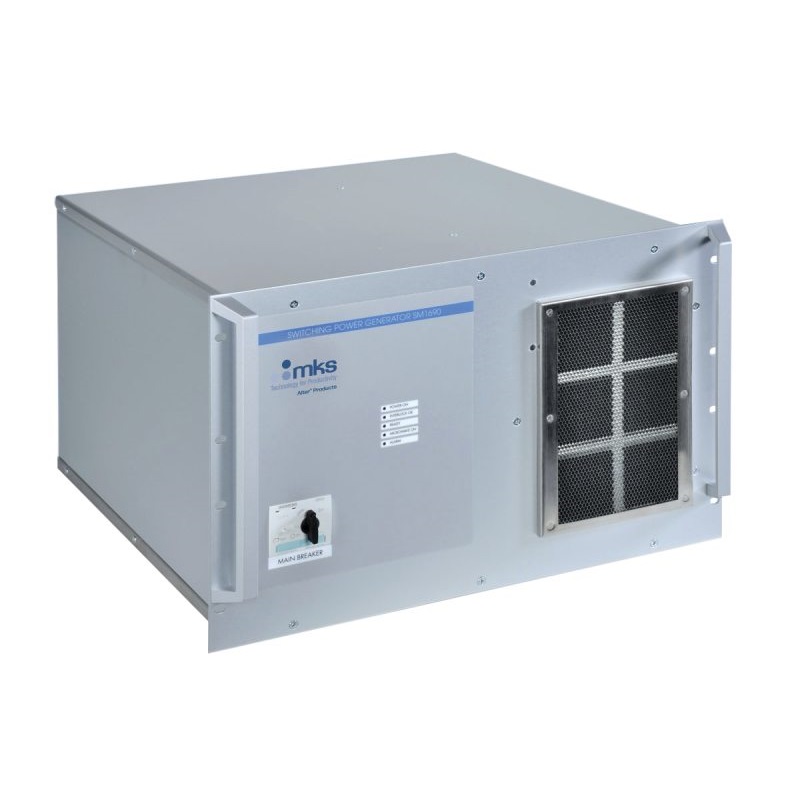

MKS SM-1690 空冷式スイッチモードマイクロ波電源 (10kW; 2.45GHz)

  • 生産者:MKS
    Model: SM-1690
    • 要件クオート Request a Quotation
  • 連絡先
    • カートへ追加
    • 今すぐ注文
  • 전화번호: いい価格のため、連絡しなさい
    ホットライン: (+84) 968060220
    電話番号: +84 (24)62923267

Power Output: 14 kW max

Input Voltage: 3 x 400V or 3 x 480V

Line Frequency: 50/60 Hz

Efficiency: 92%

Output Current: 1600 mA max

Dimensions: 444 x 301 x 465 mm (17.5 x 11.85 x 18.31 inches) (width x height x depth)

                     Front Panel Width: 482 mm (18.98 inches)

Weight: 40kg (88 lbs)

Cooling: Forced air, approx 200 m3/h

Ambient Operating Temperature: 40°C (104° F) max

Compliance: CE mark, Directive EMC and LV, through norms EN61010-1, EN61000-6-4, EN61000-6-2

Preferred Microwave Magnetron Head: TM100

Compatible with: 10kW, 2.45 GHz Magnetron

Details

Literature


Drawing
