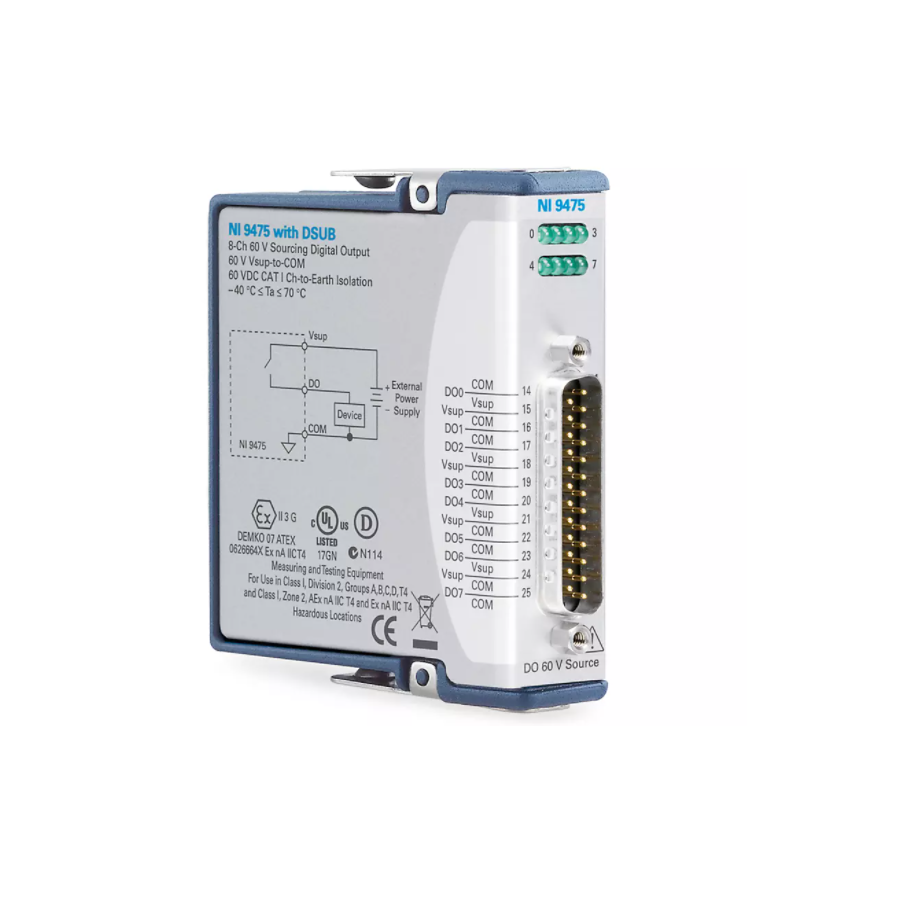

NI NI-9475 C Series Digital Module (D-SUB, 8ch, 12 V 24 V 48 V, 1 µs)
生産者: NI Model: NI-9475 P/N: 780132-01 - 連絡先
전화번호: いい価格のため、連絡しなさい
ホットライン: (+84) 968060220
電話番号: +84 (24）62923267
Number of Digital Input Only Channels: 0
Number of Digital Output Only Channels: 8
Number of Bidirectional Digital Channels: 0
Digital I/O Logic Levels: 12 V 24 V 48 V
Maximum Update Rate: 1 µs
Current Flow Direction: Sourcing Output
Digital I/O Isolation: 60 VDC Ch-Earth Ground Isolation
Front Connection Type: D-SUB
Conformal Coated: No
Enclosed: Yes
Supported Hardware Platform: CompactDAQ CompactRIO
Kit Contents
• NI 9475
• NI 9475 Getting Started Guide
Required Accessories
• 25-Pin DSUB to Screw-Terminal Connector Block
• Shielded Female to Male Cable, 1 m
Provides digital input and output capabilities for CompactDAQ or CompactRIO systems.
The C Series Digital Module interacts with a range of industrial switches, transducers, and devices. Some modules include an LED per channel that indicates the state of the channel. It supports input, output, or a combination of digital lines, and they can interact with a variety of voltages and logic levels, so they are well-suited for a variety of benchtop and industrial environments. Additionally, the C Series Digital Module also offers isolation options and sinking or sourcing capabilities to add further protection to your digital I/O application. When you use the C Series Digital Module with CompactRIO, you can use LabVIEW FPGA to create custom high-speed counter/timers, digital communication protocols, pulse generation, and more.The C Series Digital Module includes the NI-DAQmx driver and configuration utility that simplify configuration and measurements. NI-DAQmx supports NI programming environments as well as Python, ANSI C, C#.NET, and MathWorks MATLAB® software.
Datasheet
