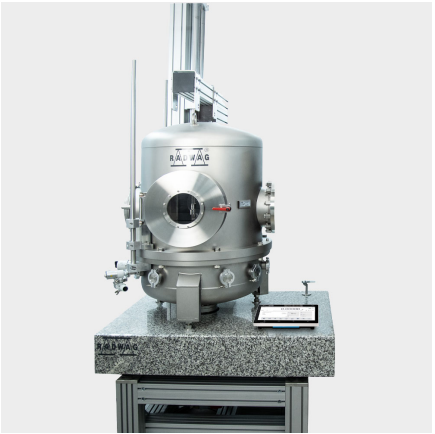

RADWAG AVK 1000.5Y.CP 自動定圧質量比較器 (1002 g; 0.1 µg)

Metrological parameters:

E1 Calibration Range :  100 g – 1 kg

E2 Calibration Range : 100 g – 1 kg

F1 Calibration Range : 100 g – 1 kg

F2 Calibration Range : 100 g – 1 kg

Maximum capacity [Max] : 1002 g

Readability [d] : 0.1 µg

Standard repeatability [5% Max] : 0.7 µg

Standard repeatability [Max] : 1 µg

Permissible repeatability :  1.5 µg

Electric compensation range :  -1 g – +2 g

Stabilization time : 60 s

Adjustment : external

Physical parameters:

Display : 10″ graphic colour touchscreen

Weighing pan dimensions : ø100 mm

Vacuum chamber dimensions : 965×745×1150 mm

Pressure range : constant

Object diameters : cylindrical ø (22 – 95)x110; spherical ø (40 – 100)mm

Weighing device dimensions : 965×745×1700 mm

Controling device dimensions : 249×170×72 mm

Net weight (without table) : 250 kg

Net weight (with table) : 650 kg

Communication interface:

Communication interface : 2×USB-A, USB-C, HDMI, Ethernet, Wi-Fi, Hotspot

Electrical parameters:

Power supply : 100 – 240 V AC 50/60 Hz

Environmental conditions:

Operating temperature: +15 – +30 °C

Operating temperature change rate : ±0.1 °C / 12 h

Relative humidity : 45% – 60%
