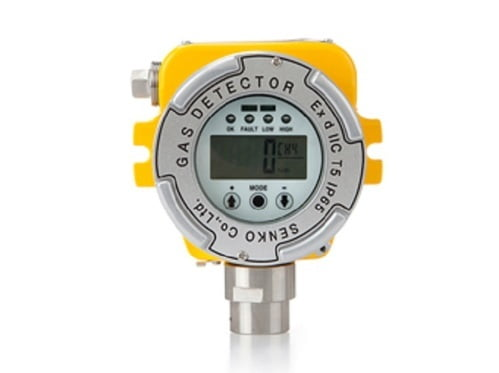

SENKO SI-100 HCL 固定式ガス検知器 (0-10ppm)

Range: 0~10ppm

A1: 1ppm

A2: 2 ppm

Resolution: 0.1ppm

Sampling method: Diffusion type

Display: LCD (Blue Backlight)

Detectable gas: HCL

Sensor type: electrchemical cell

Setup and control : Magnetic interface to configure alarm & calibrations

Alarm output: 1st alarm, 2nd alarm, Relay contact (<30V, 2A)

Analog Output: 4-20mA

Digital Output: RS-485 Modbus

Current travels far:

For Analog MAX output. 2,500 m

For Digital MAX output. 1,000 m

Working temperature and humidity: -20 to 50℃ : 5 to 95% RH (Non-condensing)

Power supply 10~30V DC

Dimensions: 150mm(W)×165mm(H)×110mm(D)

Weight: 1.8 kg

Degree of protection against water: Ex d IIC T5, IP65
