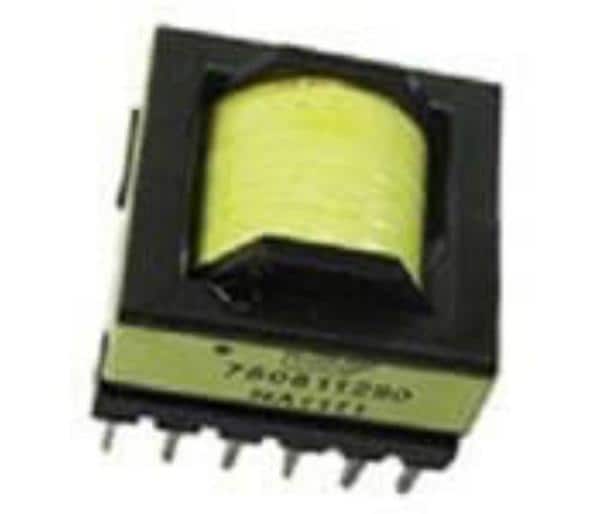

Wurth Elektronik 750813144 Flyback MID-OLLT LT3798 600 uH 14 W
生産者: Wurth Elektronik Model: 750813144 - 連絡先
전화번호: いい価格のため、連絡しなさい
ホットライン: (+84) 968060220
電話番号: +84 (24）62923267
Width: 16.5 mm
Height: 18 mm
Length: 18 mm
Inductance: 600 uH
Turns Ratio: 0.167369329
Unit Weight: 7.200 g
Power Rating: 14 W
Mounting Style: Through Hole
Primary Winding: Single Primary Winding
Secondary Winding: Dual Secondary Winding
Termination Style: Through Hole
Operating Frequency: 100 kHz
Primary Voltage Rating: 85 VAC to 265 VAC
Secondary Current Rating: 500 mA
Secondary Voltage Rating: 28 V
Operating Temperature Range: - 40 C to + 125 C
Maximum Operating Temperature: + 125 C
Minimum Operating Temperature: - 40 C
