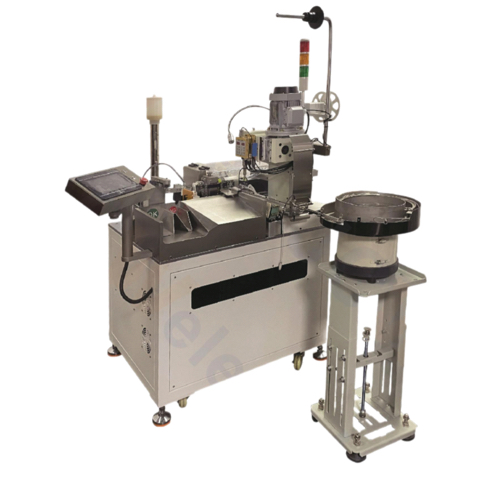

JCW JCW-CM04 Insulated Sleeve Insertion and Wire Crimping Machine (0.03-2 mm², 80-3000 mm, 20 KN)

Function: Single / Dual-end strip, Single / Dual-end crimp, Single / Dual-end sleeve insertion, Vibrate bowl, Cut depth, Pull-off length, Crimp position

Conductor cross-section: 0.03-2 mm²

Stripping length: 0.1-15 mm

Cutting length: 80-3000 mm

Crimping force: 20 KN (2.0 tons)

Rated power: 1500~2800W

Power supply: AC 110V-220V ± 10%, 50/60Hz

Air supply: 0.5-0.7 MPa [Clean and dry air]

Detection: Wire lack, Wire jam, Stripping, Crimping, Air pressure

CE-Conformity: Complies with CE equipment guidelines relative to mechanical and electrical safety and electromagnetic compatibility.
