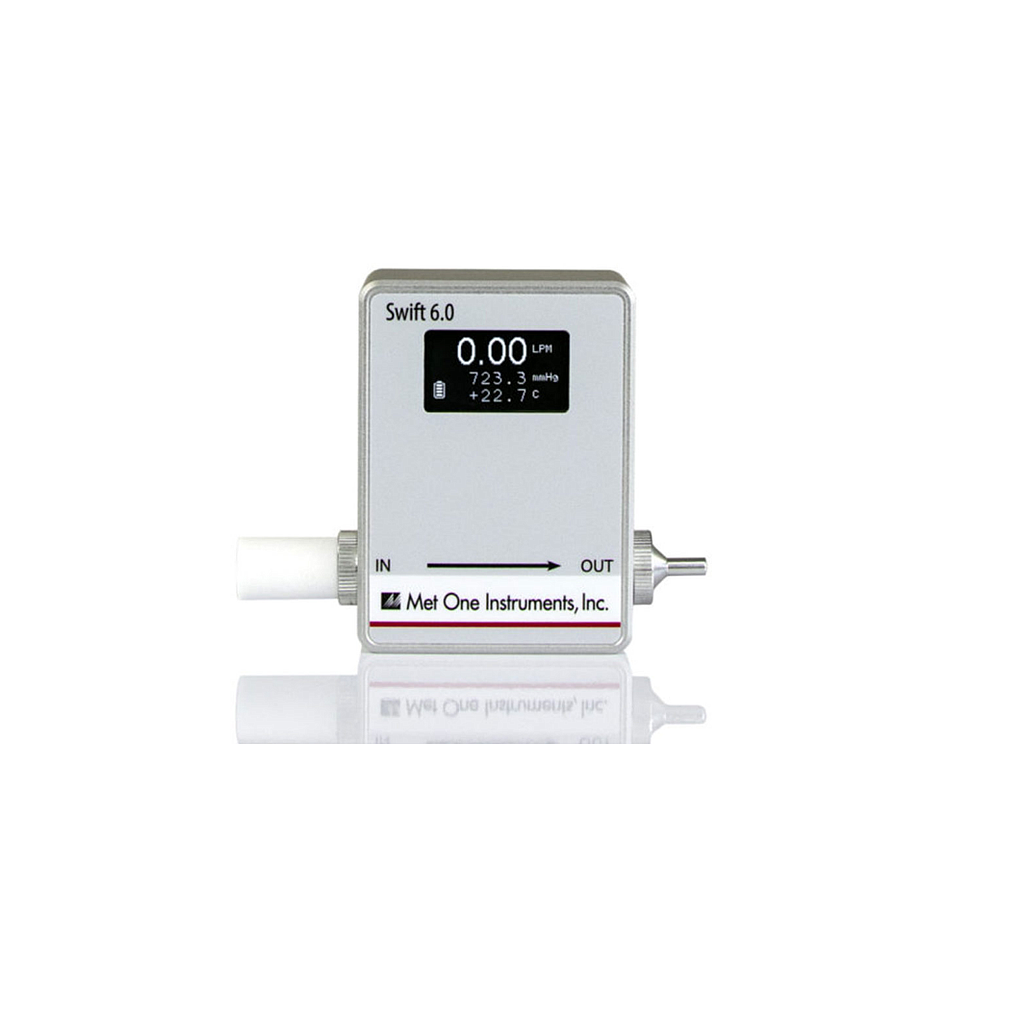

METONE SWIFT 6.0 유량계 (0.1~6.0LPM; 0.01LPM)

Parameter

Flow Range: 0.1~6.0LPM

Flow Accuracy: ±2% of reading or 0.05LPM (whichever is greater)

Display Resolution (Flow): 0.01LPM

Display Units: LPM

Barometric Pressure Range: 533~1033mbar

Barometric Pressure Accuracy: ±16mbar

Display Resolution (Pressure): 0.1mbar

Pressure Units: mbar, mmHg, kPa, in Hg, Pa

Temperature Accuracy: ±1°C

Display Resolution (Temp.): 0.1°C

Temperature Units: C, F

Electrical

DC Power: Internal Lithium-ion battery

Charging: USB-C

Serial: USB-C

Battery Life: 8 to 10 hours

Driver: CP210X

Software: Swift Setup Software

Interface

OLED Display: White on Black, 128x64 Resolution

Display Parameters: Flow Rate, Temperature, Pressure, Battery Leve

Physical

Weight: 12oz. (340.19g)

Size (WxHxD): 2.75x3.75x1.25 in.(6.985x9.525x3.175cm)

Environmental

Operating Temperature Range: 10°C~50°C

Operating Humidity: 0~100%, non-condensing

Supplied accessories:

Operator's Manual

Calibration Certificate (NIST)

Inlet Filter

Flow Adapters (2):

- Large: for 0.5" O.D. hard tube

- Small: for 1/8" I.D. rubber tube

USB Cable

Carrying Case

Software & Driver Available from Website
