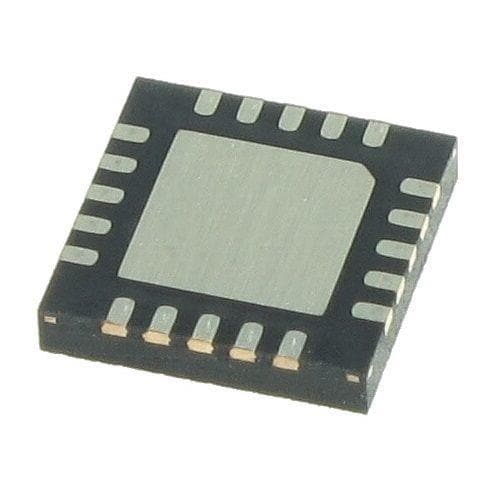

Silicon Labs SI4463-C2A-GMR ISM +13/-116 dBm sub-GHz Transceiver
생산업체: Silicon Labs Model: SI4463-C2A-GMR - 연락처
Sensitivity: - 127 dBm, - 129 dBm
Unit Weight: 228.230 mg
Output Power: 20 dBm
Interface Type: SPI
Mounting Style: SMD/SMT
Frequency Range: 142 MHz to 1.05 GHz
Maximum Data Rate: 1 Mbps
Modulation Format: FSK, GFSK, GMSK, MSK, OOK
Number of Receivers: 1 Receiver
Supply Voltage - Max: 3.8 V
Supply Voltage - Min: 1.8 V
Number of Transmitters: 1 Transmitter
Operating Supply Voltage: 3.3 V
Supply Current Receiving: 13.7 mA
Supply Current Transmitting: 85 mA
Maximum Operating Temperature: + 85 C
Minimum Operating Temperature: - 40 C
