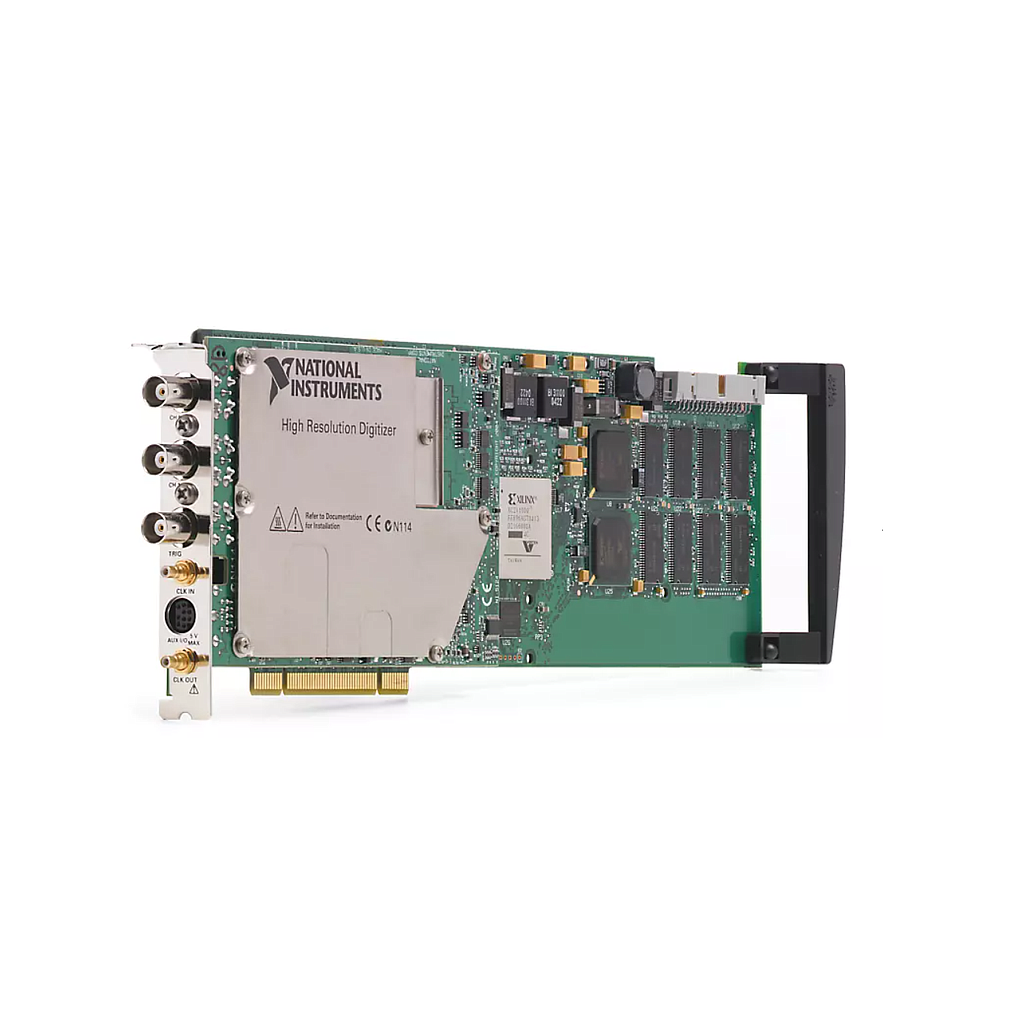

Oscilloscope Device NI PCI-5124 (PCI, 2 Channels, 200 MS/s, ±10 V, 8 MB/ch)
Hãng sản xuất: NI Model: PCI-5124 P/N: 779171-01 - Liên hệ
Gọi để có giá tốt
TP. Hà Nội: (024) 35.381.269
TP. Đà Nẵng: (023) 63.747.711
TP. Bắc Ninh: (0222)730.39.68
TP. HCM: (028) 38.119.636
Bus Connector: PCI
Oscilloscope Maximum Bandwidth: 150 MHz
Maximum Sample Rate: 200 MS/s
Number of Voltage Input Channels: 2
Analog Input Resolution: 12 bits
Oscilloscope Onboard Memory Size: 8 MB/ch
Analog Input Voltage Range: -10 V to 10 V
Onboard Digital Downconverter: No
Enclosed: Yes
Acquires and analyzes time‐ and frequency-domain analog waveforms.
Oscilloscope Devices are flexible, software‐defined instruments that are versatile enough for both time‐ and frequency‐domain measurements and are offered in industry-standard form factors like PCI and USB. They feature up to eight channels that can sample at speeds up to 2 GS/s. The devices also feature numerous triggering modes, deep onboard memory, and driver software API that includes data streaming and analysis functions.
Datasheet
