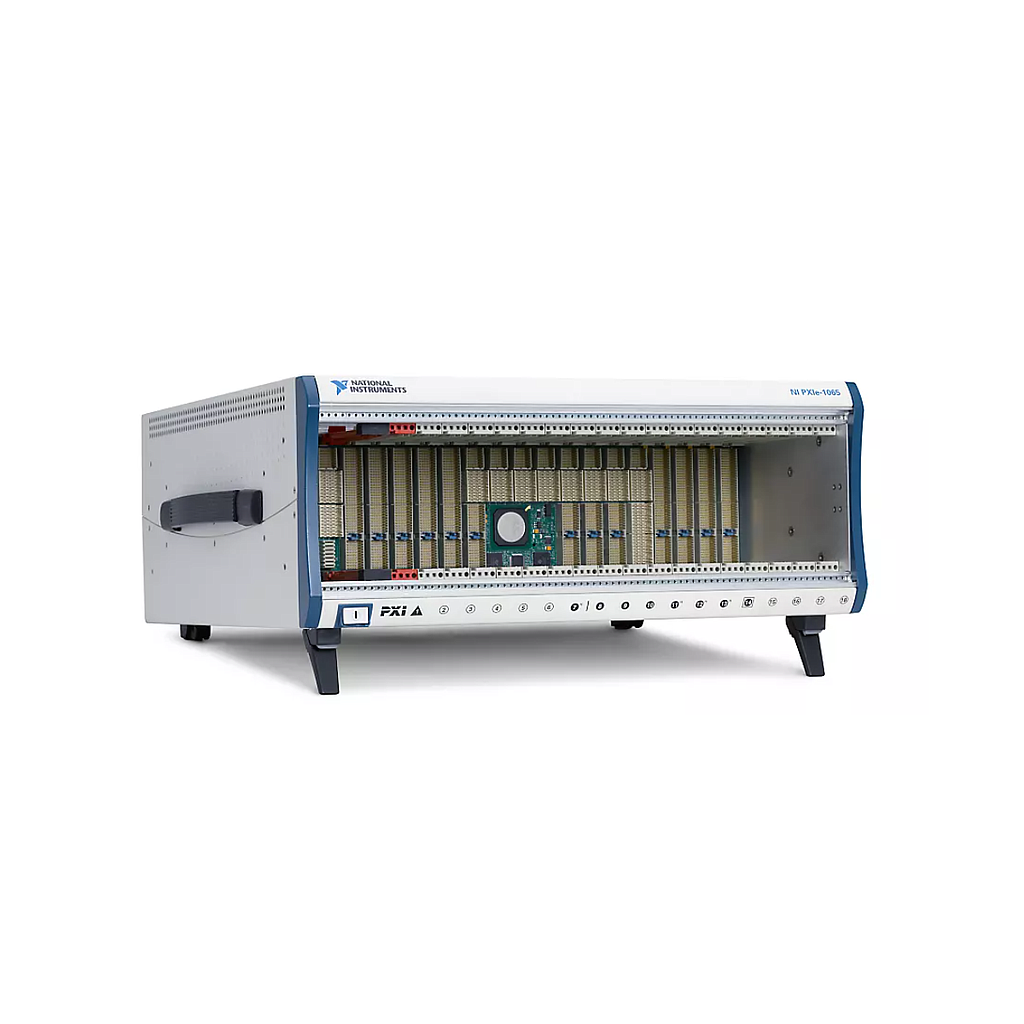

PXI Chassis NI PXIe-1065 (18-slot, AC, 3 GB/s)
Hãng sản xuất: NI Model: PXIe-1065 P/N: 779730-01 - Liên hệ
Gọi để có giá tốt
TP. Hà Nội: (024) 35.381.269
TP. Đà Nẵng: (023) 63.747.711
TP. Bắc Ninh: (0222)730.39.68
TP. HCM: (028) 38.119.636
PXI Chassis Type: PXI Express
Slot Count: 18
Maximum System Bandwidth: 3 GB/s
Chassis Power Supply Type: AC
Slot Cooling Capacity: 38 W
Onboard Clock Type: VCXO
External Clocking: Yes
Number of PXI Express Slots: 4
Number of Hybrid Slots: 4
Number of PXI Slots: 9
System Timing Slot: Yes
External Trigger Access: No
Redundant HW Option: No
Houses PXI modules and connects them with a high-performance backplane that offers timing and synchronization capabilities.
PXI Chassis are compatible with PXI, PXI Express, and PXI hybrid modules and meet the cooling requirements of the most power-demanding PXI modules. You can also choose chassis options that minimize the overall system acoustic emissions. Chassis can provide up to 18 slots, with a mixture of both PXI and PXI Express module compatibility, and you can choose between AC and DC power options.
Datasheet
