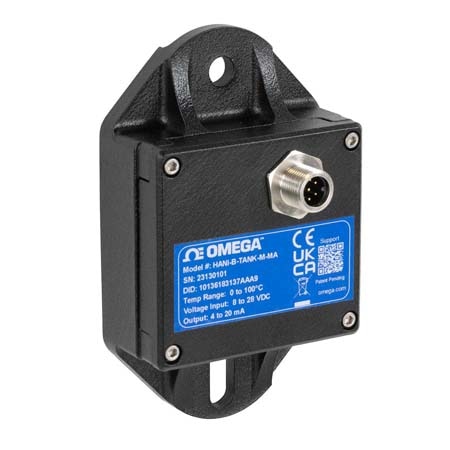

Cảm biến nhiệt độ HANI cho bể kim loại OMEGA HANI-B-TANK-M-MA (Chemicals, Clean Water and Purified Solutions, Fluid Measurement and Control, Food and Beverage, Fuel and Gas, General Purpose, Industrial and Manufacturing, Oils, Pharmaceutical, Waste Management, Nylon, Silicone, Brass, Stainless Steel)
Hãng sản xuất: OMEGA Model: HANI-B-TANK-M-MA - Liên hệ
Gọi để có giá tốt
TP. Hà Nội: (024) 35.381.269
TP. Đà Nẵng: (023) 63.747.711
TP. Bắc Ninh: (0222)730.39.68
TP. HCM: (028) 38.119.636
Width: 4.38 in
Height: 1.72 in
Length: 2.6 in
Accuracy: ± 0.5 °C (± 0.9 °F)
Mounting: Bolt-On
Materials: Nylon, Silicone, Brass, Stainless Steel
Applications: Chemicals, Clean Water and Purified Solutions, Fluid Measurement and Control, Food and Beverage, Fuel and Gas, General Purpose, Industrial and Manufacturing, Oils, Pharmaceutical, Waste Management
Accuracy Note: ± 0.5°C (± 0.9°F) (stainless steel); ± 1.0°C (± 1.8°F) (other metals)
Base Mounting: Metal Tank
Output Detail: 4 to 20 mA User scalable analog output, default scaling 0-100°C
Output Signal: Current
Response Time: t63: 5 sec ; t90: 10 sec
Tank Diameter: less than 2 ft
Supply Voltage: 8 to 28 Vdc
Loop Resistance: (Vsupply -8V)/0.24 A
Enclosure Ratings: IP65
Supply Power Note: 8 VDC - 28 VDC (loop powered)
Media Compatibility: Water, Water-based fluids
Electrical Connection: M12 8 pin Female
Process Temperature, Max: 100 °C
Process Temperature, Min: 0 °C
Operating Temperature, Max: 40 °C
Operating Temperature, Min: 0 °C
