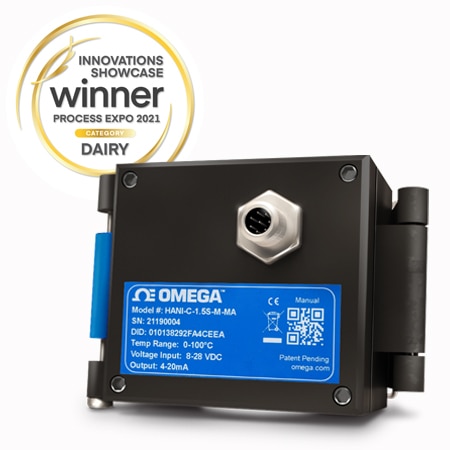

Cảm biến nhiệt độ HANI kẹp ống nhựa công nghiệp OMEGA HANI-C-1.0I-P-MA (Aeronautics and Aerospace, Air and HVAC, Building and Maintenance, Chemicals, Clean Water and Purified Solutions, Energy Generation and Distribution, Fluid Measurement and Control, Food and Beverage, Fuel and Gas, General Purpose, Heat and Energy Systems, Hydraulic and Pneumatic Systems, Industrial and Manufacturing, Laboratories and Scientific, Materials and Surfaces, Medical, Office and Commercial, Oils, Pharmaceutical, Waste Management, Nylon, Silicone, Brass, Stainless Steel, 1 in)

Width: 2.38 in

Height: 2.03 in

Length: 2.53 in

Accuracy: ± 1.5 °C (± 2.7 °F)

Mounting: Clamp

Materials: Nylon, Silicone, Brass, Stainless Steel

Applications: Aeronautics and Aerospace, Air and HVAC, Building and Maintenance, Chemicals, Clean Water and Purified Solutions, Energy Generation and Distribution, Fluid Measurement and Control, Food and Beverage, Fuel and Gas, General Purpose, Heat and Energy Systems, Hydraulic and Pneumatic Systems, Industrial and Manufacturing, Laboratories and Scientific, Materials and Surfaces, Medical, Office and Commercial, Oils, Pharmaceutical, Waste Management

Accuracy Note: ± 1.5°C from factory and improved accuracy possible with in-situation 1 or 2-point calibration

Base Mounting: PVC, CPVC, PP, PFA

Output Detail: 4 to 20 mA User scalable analog output, default scaling 0-100°C

Output Signal: Current

Response Time: t63: 30 sec; t90: 60 sec

Pipe Size, Max: 1 in

Supply Voltage: 8 to 28 Vdc

Loop Resistance: (Vsupply -8V)/0.24 A

Enclosure Ratings: IP65

Supply Power Note: 8 VDC - 28 VDC (loop powered) Max Loop Resistance: Rmax (Ω)= (Vsupply -8V)/0.24 A

Media Compatibility: Water, Water-based fluids

Electrical Connection: M12 8 pin Female

Process Temperature, Max: 100 °C

Process Temperature, Min: 0 °C

Operating Temperature, Max: 40 °C

Operating Temperature, Min: 0 °C
