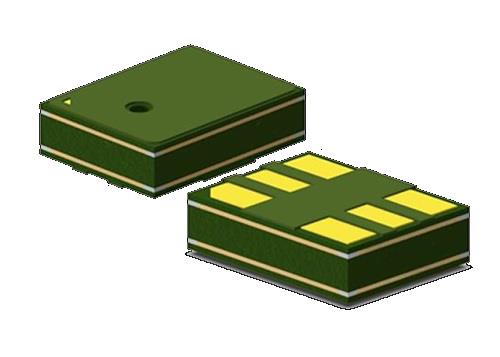

High Dynamic Range Microphone High Dynamic Range Microphone with Differential Output and Low Power TDK InvenSense ICS-40619
Hãng sản xuất: TDK InvenSense Model: ICS-40619 - Liên hệ
Gọi để có giá tốt
TP. Hà Nội: (024) 35.381.269
TP. Đà Nẵng: (023) 63.747.711
TP. Bắc Ninh: (0222)730.39.68
TP. HCM: (028) 38.119.636
Depth: 0.98 mm
Shape: Rectangular
Width: 2.65 mm
Length: 3.5 mm
Impedance: 5.5 kOhms
Port Type: Top
Tolerance: 1 dB
Technology: MEMS
Output Type: Analog
Sensitivity: - 38 dB
Unit Weight: 401.250 mg
Mounting Style: SMD/SMT
Frequency Range: 20 Hz to 20 kHz
Termination Style: SMD/SMT
Sound Pressure Level: 160 dB
Supply Voltage - Max: 3.63 V
Supply Voltage - Min: 1.52 V
Directional Properties: Omnidirectional
Operating Supply Current: 165 uA
Operating Supply Voltage: 2.75 V
SNR - Signal to Noise Ratio: 67 dB
Maximum Operating Temperature: + 85 C
Minimum Operating Temperature: - 40 C
