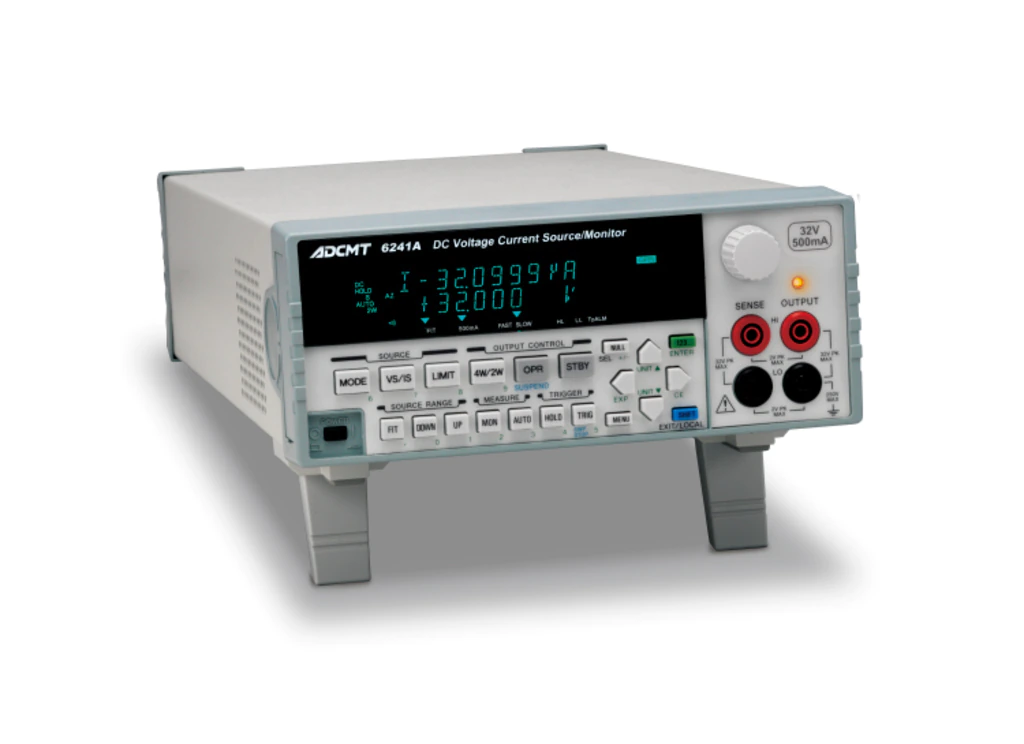

ADCMT 6241A 直流电压电流源/监视器 (±32 V/0.5 A)

Specifications

Number of digits for generation: 4½

Output method: Bipolar

Maximum output voltage: ±32 V/0.5 A

Minimum voltage resolution: 10 μV

Maximum output current: ±0.5 A/32V

Minimum current resulution: 1 nA

Number of digits for measurement: 5½

Accuracy (typical range): 0.0002

Minimum measurement voltage resolution: 1 μV

Minimum measurement current resolution: 100 pA

Maximum measurement resistance / Minimum resolution: 1.6 GΩ/2 μΩ

Pulse application / Measurement: Available

Minimum pulse width: 50 μs

Interface: USB, GPIB

Supplied Accessories:

Power cable (JIS 2 m): 1

Input and output cable (safety plug): 1

Banana tip adapter (for A01044): 1

Alligator clip adapter (for A01044): 1
