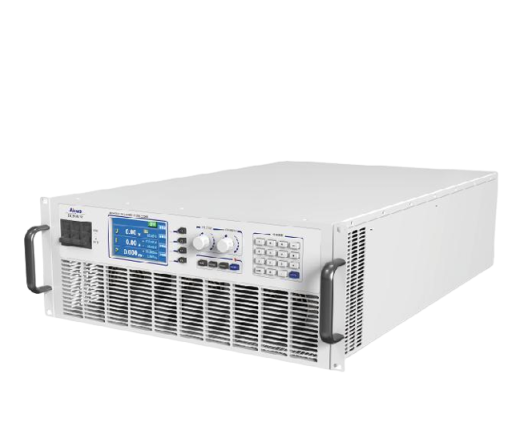

Ainuo ANEVH300-150(F) 双向可编程直流电源 (0~300VDC, -150A~150A, -10KW~10KW)

Input

Phase number: Three-phase three-wire+PE

Voltage: 342V~528VAC

Frequency: 45~66Hz

Power Factor: ≥0.99

Output

Voltage: 0~300VDC

Current: -150A~150A

Power: -10KW~10KW

Display mode: 4.3-inch color LCD

Voltage resolution: 0.01V (0.1V when >1000V)

Current resolution: 0.01A (0.1A when >1000A)

Power resolution: 0.001kW (0.01kW when >100kW)

Set up error (programming accuracy) Voltage: ≤0.05%F.S.

Set up error (programming accuracy) Current: ≤0.1%F.S.

Set up error (programming accuracy) Power: ≤1%FS

Measurement error (Read-back accuracy) Voltage: ≤0.05%F.S.

Measurement error (Read-back accuracy) Current: ≤0.1%F.S.

Measurement error (Read-back accuracy) Power: ≤1%FS

Ripple and noise Vrms (20Hz20MHz): 100mvrms

Ripple and noise Vpp (20Hz20MHz): 650mvPP

Load effect Voltage: ≤0.01%Umax

Load effect Current: ≤0.05%Imax

Source effect Voltage: ≤0.01%Umax

Source effect Current: ≤0.01%Imax

Transient response time: ≤2ms

Forward and reverse switching speed: 2ms (+90%~-90%)

Temperature drift Voltage: 0.05% setting value

Temperature drift Current: 0.05% setting value

Noise: ≤65dB(A) (Measuring distance ≥2m)

OVP range: 110%F.S

Maximum lead voltage drop compensation: ≤5% Umax (300V 6.5V)

Communication function: Standard: CAN/232/485/LAN/USB, optional: GPIB

Protection functions: Input undervoltage protection, short-circuit protection, output overvoltage, current-limiting protection and internal overheating protection.

Analog interface (optional): Start, stop, alarm, 0-5V or 0-10V analog control output

Other external interfaces: Standard configuration for parallel ports

Efficiency: ~90%

Feedback parameters

Frequency: 45-66Hz

Power factor: ≥0.99

Switching time: ≤2ms

Feedback function: Full power range feedback

Feedback efficiency: ~90%

Operating temperature: 0~40℃

Storage temperature: -20~70℃

Humidity: <80%, without condensation

Volume:

Enclosure size: 444x132.5x705.5mm

Overall dimensions: 444x132.5x768mm

Weight: ≤23kg
