Censtar BF-L-BN 波形进料焊计

Dimension(mm): 800*600*1100

PCB size(mm): 50*50-445*330

Convey type: 35B Nylon chain or specify

Convey speed: 0.5-20m/min or specify

Power supply: AC 220V ; single phase

Power: Max 100VA

PCB direction: L-R or R-L

Weight: 35kg

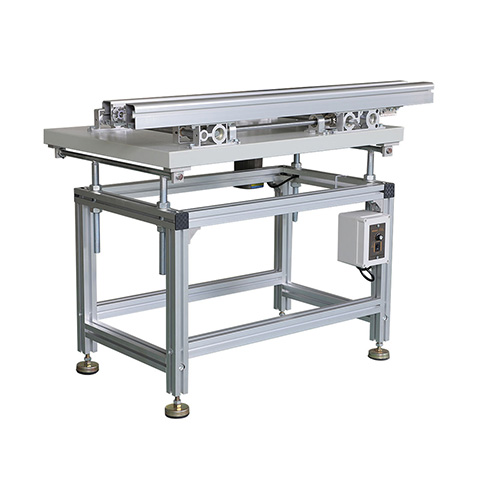

This equipment is used for Wave solder infeed PCB conveyor


1.It is using before the wave soldering machine, fulfill the automatic of the DIP production line.

2.Width and speed are adjustable.

3.Applies to the chain conveyor, running smooth and longer lifespan.

4.Green belt with hole and anti-skidding belt are optional.

5.Using in the THT production line, connect the wave soldering machine and the plug-in lines. Unload the PCBA assembly after the soldering.

6.The cooling fan can be set to cool down the PCB board.
