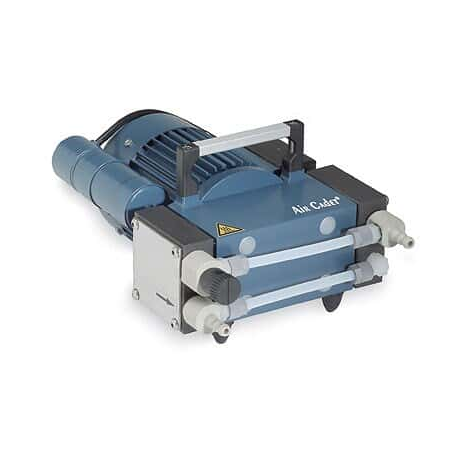

Cole parmer 400170 Air Cadet Standard Duty Diaphragm Pump (0.6 CFM; 230 VAC)

Gas Ballast : Yes

Wetted Parts : Aluminum, Viton®, Polyamide, PVC

Free-Air Capacity (CFM) : 0.6

Free-Air Capacity (LPM) : 17

Free-Air Capacity (LPH) : 1020

Max Flow Rate (CFM) : 0.6

Max Flow Rate (Liters/min) : 17

Max Vacuum (in Hg) : 29.8

Max Vacuum (mbar) : 4

Max Vacuum (mm Hg) : 3

Max Vacuum (torr) : 3

Port Size : 5/16\" hose barb

Max Temperature (° F) : 104

Max Temperature (° C) : 40

Power (VAC) : 230

Power (Hz) : 50

Height (in) : 5.6875

Width (in) : 9.25

Length (in) : 7.625

Height (cm) : 14.45

Width (cm) : 23.5

Length (cm) : 19.37

Height (mm) : 144.5

Width (mm) : 235

Length (mm) : 193.7

Motor hp : 1/12

Motor hp : 1/20

Details

Datasheet
