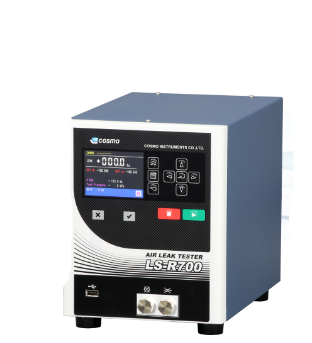

COSMO LS-R700 (A2MRG.UX2.VE) 紧凑型空气泄漏测试仪

Differential pressure

Resolving power: 0.1 Pa

Precision guaranteed range: ±1000 Pa

Excess pressure on sensors: 5 MPa

Sensor precision: ±2.5% of rdg ±1Pa, however 50Pa or below is ±2Pa

Display units

Test Pressure: kPa, MPa

(Non-SI units for overseas: PSI, kg/cm2, bar, mbar, mmHg, cmHg, inHg, etc.)

Leak volume: mL/min, L/min, mL/s, Pa/s, Pa/min, Pa, kPa, Pa・m3/s, E-3 Pa・m3/s , etc.(Non-SI units for overseas: mmH20, mmHg, inH20, etc.)

Displayed leak volume: 4 digits, sample rate: 10/second

Number of Channels: 32ch(0~31)

Timer setting range: 999.9 seconds (resolving power: 0.1 second)

Power Source: AC100~240V±10%, 50/60Hz, 70VAmax

Test pressure source: Uses clean air.The original pressure must be sufficiently higher than the test pressure.

Pilot pressure source: Applies 400 to 700kPa of clean air.

CPU: SH-2A 144MHz, DRAM 8MB

Pipe connection diameter: Rc1/4 (test pressure supply, workpiece piping, master piping) 6mm one-touch joint (pilot air supply)

Ambient temperature: Operating temperature  5 to 45°C  Storage temperature:  -20 to 60°C

Humidity: 80 %RH or less  No dew condensation

Mass: Approx. 10kg

USB Port

Saving data: Saves decisions, leak values, test pressure, WK#, CH#,  and time on inserted memory.

Set value output: Set values of all settings screens

Standard accessories

Power cord: For use in Japan:  Rating: AC125V/7A, length: 3m

For export: Rating: AC240V/10A, length: 2m (CE conformant product)

Control I/O connector, cap for RS-232C, USB cover, test report, traceability documents, user manual
