EPHIPOT EPS1000A 一次电流注入测试仪 (1000A)
制造商: EPHIPOT Model: EPS1000A - 报价要求
- 报价要求
- 联系
Input power: AC: 220V 25A, 50Hz
Output current: AC: 1000A/5V or 500A/10V
Display: LCD digital display, to show primary and secondary current, ratio and phase (polarity) at the same time.
Primary current range: 0 ~ 1100A, resolution: 0.1A
Secondary current range: 0~6A, resolution: 0.001A
Accuracy: RMS ± 0.5%
Dual protection: overload electronic protection and software protection
Operating environment: Temperature -10~40℃; Relative humidity < 80%
Volume: 430mm × 260mm × 260mm
Weight: 28kg
General Information:

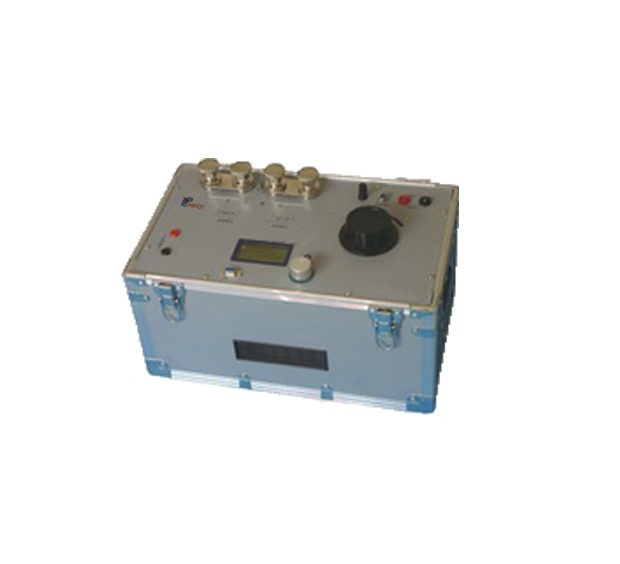

The EPS1000A primary current injection tester adopts ARM chip to control the output process and large capacity ring transformer, with LCD meter to display the primary and secondary current and ratio at the same time. It is mainly suitable for power system CT ratio, contact resistance for which requiring high current test.
