Capacity (kVA): 20
+ Voltage (V): 400
+ Current (A): 50
+ Voltage (kV): 50
+ Current (mA): 400
Measuring Turns Ratio: 500
60 mins Temperature Rise (℃): 50
Impedance Voltage (％): 8
No Load Current (％): <4
Weight (kg): 140
Appearance (L*W*H) (mm): 285Х440Х820

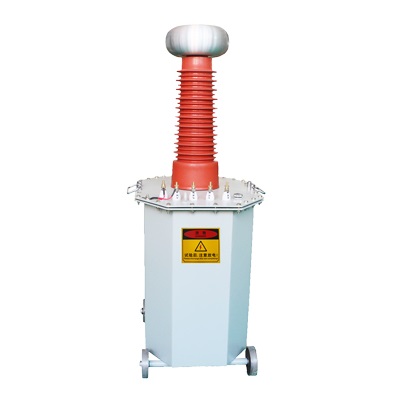

YDJ Series Oil Testing Transformer
YDJ Series Oil Testing Transformer can provide high voltage for various HV testing, and AC/DC HV output, to provide HV voltage to HV test.
EP Hipot Electric oil type transformers are virtually maintenance free and are manufactured in accordance with industry and international standards including ISO 9001.
- Compact in design, low cost and maintenance free.
- Hermetically sealed with good insulation ability.
- Stable accuracy over life time
- Over voltage protection.
- Octagonal shell, a movable wheel can be installed for 10KVA or above testing transformers, easy to move.
