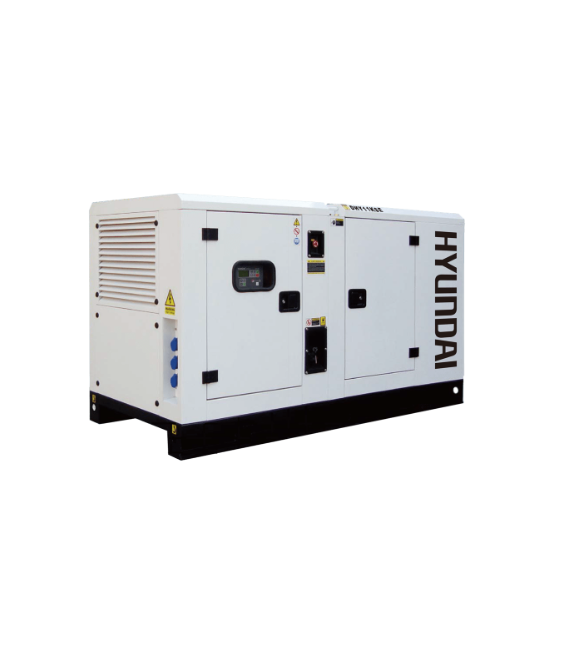

Hyundai DHY11KSE 三相400V/230V柴油发电机 (10.5/10.5 KW/KVA)

Generator

Continuous Power Output (kW/kVA): 10.5/10.5

Standby Power Output (kW/kVA): 11.55/11.55

Operating Frequency: 50 Hz

Voltage: 230V

Current (A): 47.7

Phase: 1-phase

Starting System: Electric Start

ATS Connection Port: Yes

Fuel Tank Capacity: 40 liters

Fuel Consumption at 100% Load: 3.5 L/h

Continuous Operating Time at 75% Load: 9.9 hours

Noise Level at 7m: 68 dB

Battery: 12V

Dimensions (mm): 1600×740×825

Total Machine Weight (kg): 560

Engine

Model: HY4DW81

Engine Type: Diesel

Rotation Speed: 1500 rpm

Configuration: 4 cylinders

Compression Ratio: 18.5:1

Lubricating Oil Capacity (L): 7.8

Lubricating Oil Consumption (L/h): 0.04

Exhaust Gas Flow (m³/min): 4.7

Exhaust Gas Temperature (°C): 470

Engine Dimensions (mm): 700×555×680

Net Engine Weight (kg): 220

Alternator

Model: 164C

Phase: 1-phase

Power Output (kVA): 10.8

Power Factor: 1.0

Protection Class: IP23

Insulation Class: H

Voltage Regulation: Automatic AVR with SX460
