Imko SONO-VARIO Xtrem 混凝土水分仪

Applications and benefits

Ideal for measurements in highly abrasive bulk solids like for example 8-16mm gravel or sludge

Highest reliability also when measuring adhesive materials like pastes, lime, powder, cellulose, dough and similar

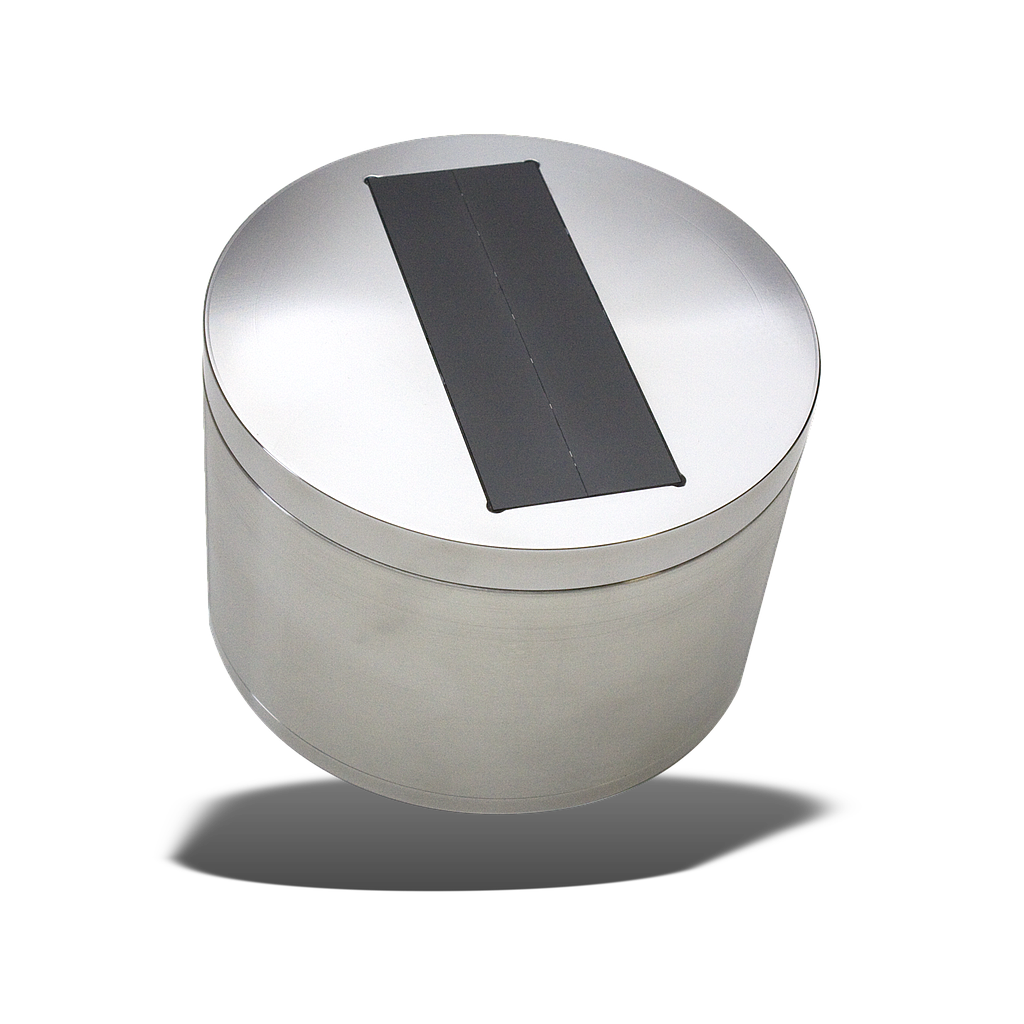

The probe head consists of strongly abrasion-resistant, hardened steel with a rectangular ceramic window and it is interchangeable

Precise measurement also under extreme conditions

TRIME technology ensures reliability even with steam or different particular sizes of sand and gravel

The additionally measured radar based conductivity value up to 12dS/m allows conclusions on other parameters of the material recipe

Simple installation in containers, shafts, silos and at conveyor belts

Automatic correction of measuring value in case of abrasion of the probe head without recalibration

Intelligent preprocessing of measuring values with floating averaging, adjustable filter and up to 15 calibration curves happens directly in the probe

Two variably adjustable analog outputs 0 (4)…..20mA enable an easy connection to every control system

A RS485 interface connects the operation of the probe

A data bus protocol to connect several SONO probes is included

A connection of the probe to industry busses like Profibus, Ethernet and similar is possible via optional, external modules
