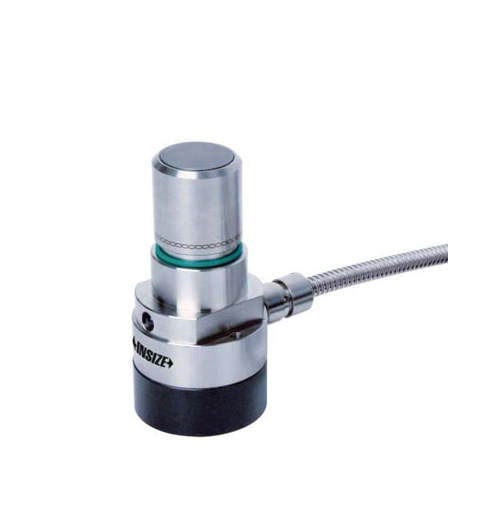

INSIZE 9411 零点设置器 (25mm)

Height: 80mm (the height is 100mm after adding the mounting base)

Diameter of zero setter: 25mm

Downward travel: 5mm

Axial reset force: 6N±0.3N

Repeated trigger accuracy: ≤1μm

Hardness of the zero setter:  HRA90-93

Class of protection: IP68

Cable length*: 6m (stainless steel sheath 3m)

Input voltage:  24V±10% (DC)

Load current: max: 50mA

Signal type and logic**: SSR (NC/NO)

*The length of the cable can be customized

**Before purchasing, it is necessary to confirm whether the working logic of the tool setter output signal matches CNC control system
