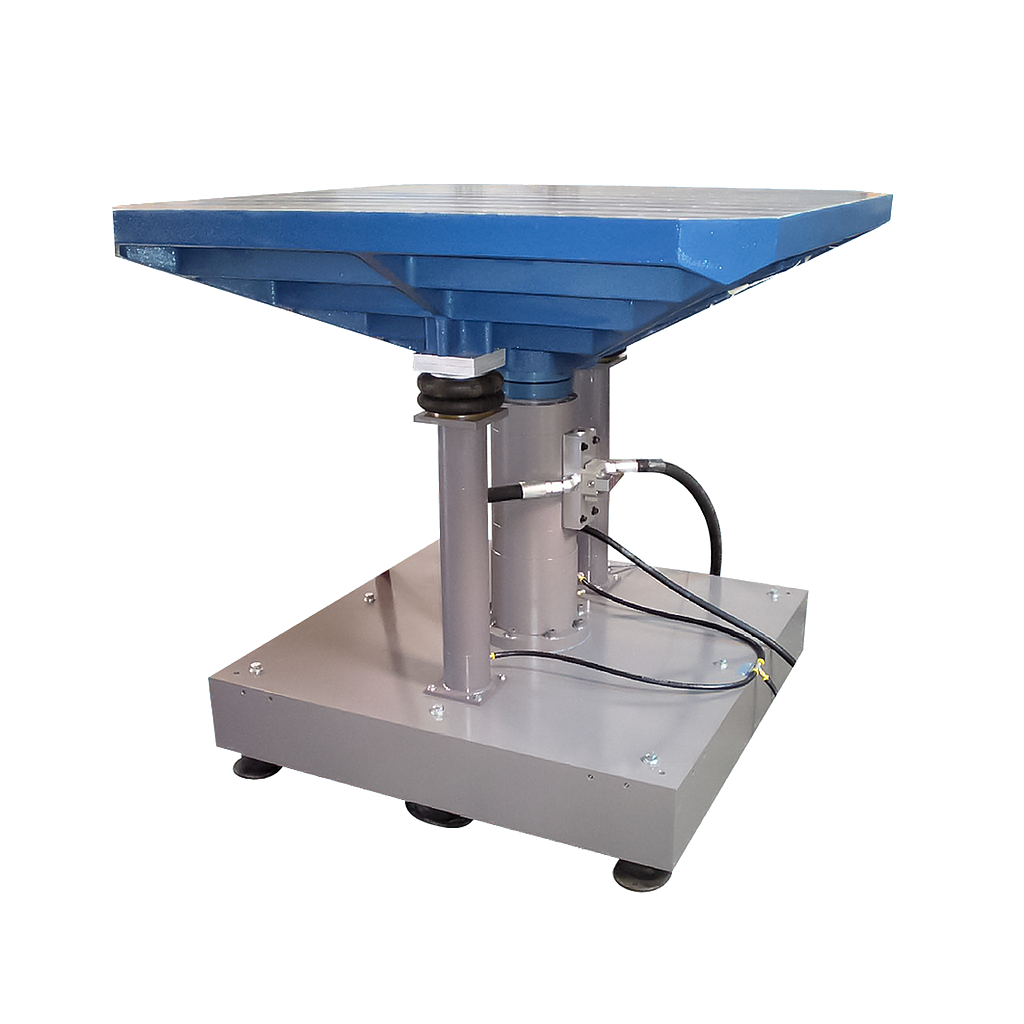

Lansmont 7000 垂直振动试验系统 (1 – 300 Hz.)

Frequency Range:  1 – 300 Hz.

Maximum Stroke Options (peak-to-peak) : 2.5 in. (6.4 cm); 4.0 in. (10.2 cm); 6.0 in. (15.2 cm)

Actuator Stall force (at 3000 psi (207 bar)):  9171 lbs. (41 kN)

Actuator Dynamic Force (at 3000 psi (207 bar)) : 6114 lbs. (27.2 kN)

Table Sizes : 48 in. (122 cm) square;  60 in. (152 cm) square; 72 in. (183 cm) square

Standard Hole Patterns : 6 in. grid, 3/8-16 Stainless Steel inserts; 15 cm grid, M10 x 1.5 Stainless Steel inserts

POWER REQUIREMENTS

System: 200 – 460 VAC; 50, 60 Hz; Three Phase

Controls:  100 – 240 VAC; 50, 60 Hz; Single Phase

FACILITY REQUIREMENTS

Cooling Water : Standard HPS – 6 gpm at 60⁰F (23 L/min. at 15.5⁰C)

Plant Air:  80 psi (552 kPa), 1 scfm

For 1-G Supports (optional)
